435-10-204-00-160000

Headers, Male Pins Overview

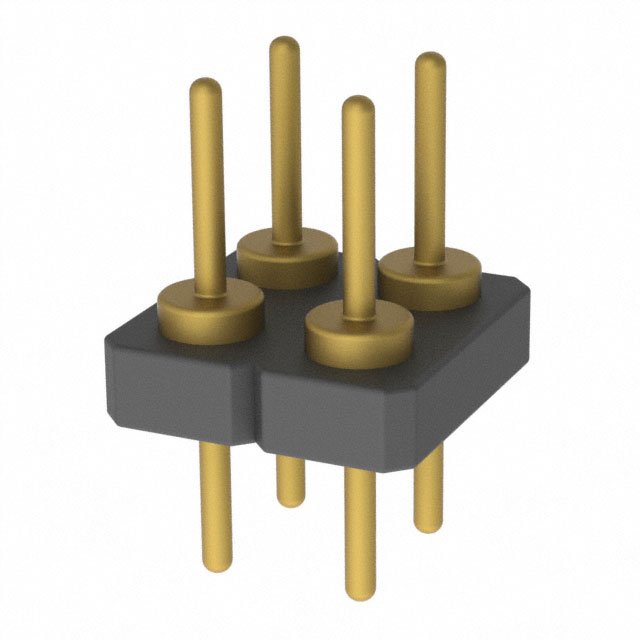

The Mill-Max 435-10-204-00-160000 is a low-profile interconnect socket header designed for through-hole mounting. It features four positions with a 0.100-inch (2.54mm) mating pitch, providing reliable electrical connections in compact assemblies. The component utilizes brass alloy contacts with gold plating to ensure durability and conductivity. Its circular contact form factor supports standard pin configurations, while the low-profile design minimizes overall height requirements within electronic devices.

Headers, Male Pins Feature Summary

• Low-profile construction for minimizing interconnect height
• Gold-plated brass alloy contacts for reliable performance
• Through-hole mounting for secure PCB attachment

Headers, Male Pins Applications

• Compact electronic device interconnections
• Board-to-board connectivity solutions
• High-reliability precision-machined applications

Headers, Male Pins Procurement Notes

Verify the specific part number against official Mill-Max documentation to confirm compatibility with your design requirements. Ensure that the through-hole mounting style and low-profile dimensions align with your PCB layout constraints. Cross-reference the contact material and plating specifications to guarantee suitability for your operational environment and current ratings.

Headers, Male Pins Selection Notes

Select this component when space constraints require a minimized vertical profile for interconnect sockets. Consider the four-position configuration and 2.54mm pitch for standard board-to-board or cable-to-board applications. Evaluate the low-profile design benefits against mechanical stability needs and verify that the through-hole termination method matches your manufacturing processes.

Headers, Male Pins Part Context

This connector belongs to the Mill-Max Low-Profile Interconnect Sockets series, which focuses on reliability and compactness. Mill-Max Manufacturing Corp. specializes in high-reliability precision-machined interconnect components, offering a range of solutions for demanding electronic applications where space and performance are critical factors.

Headers, Male Pins Replacement Considerations

Consult official Mill-Max catalogs for direct substitutes with identical pin counts and pitch. Verify that any alternative maintains the low-profile characteristic and through-hole mounting style to ensure mechanical and electrical compatibility without redesigning the PCB footprint.
