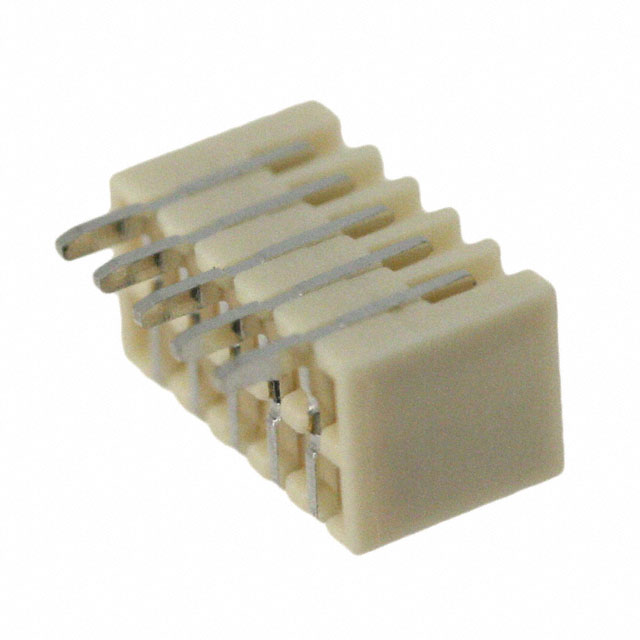

5-1775444-5

5-1775444-5 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN HEADER SMD R/A 5POS 1.5MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 5-1775444-5

• Description：CONN HEADER SMD R/A 5POS 1.5MM
• Series：High Performance Interconnect (HPI)
• Mfr：TE Connectivity AMP Connectors
• Package：Tape & Reel (TR),Cut Tape (CT)
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.059" (1.50mm)
• Number of Positions：5
• Number of Rows：1
• Row Spacing - Mating：-
• Number of Positions Loaded：All
• Style：Board to Cable/Wire
• Shrouding：Shrouded - 4 Wall
• Mounting Type：Surface Mount, Right Angle
• Termination：Solder
• Fastening Type：-
• Contact Length - Mating：0.106" (2.70mm)
• Contact Length - Post：-
• Overall Contact Length：-
• Insulation Height：0.175" (4.45mm)
• Contact Shape：Square
• Contact Finish - Mating：Tin
• Contact Finish Thickness - Mating：100.0µin (2.54µm)
• Contact Finish - Post：Tin
• Contact Material：Brass
• Insulation Material：Thermoplastic
• Features：-
• Operating Temperature：-55°C ~ 105°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Natural
• Current Rating (Amps)：3A
• Voltage Rating：250VAC

Headers, Male Pins datasheet and documents for 5-1775444-5
