5030911421

Headers, Male Pins Overview

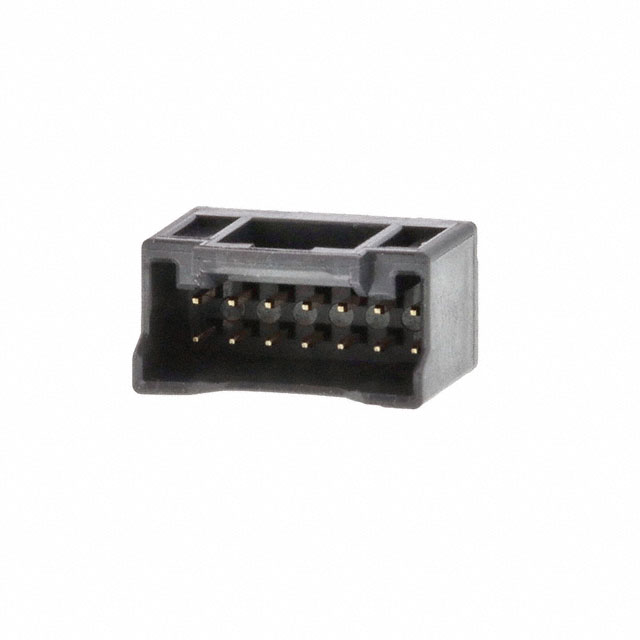

The Molex 5030911421 is an active iGrid PCB header featuring a 2.00mm pitch and dual-row configuration with 14 positions. Designed for vertical through-hole mounting, it utilizes gold plating on male pins to ensure signal integrity. The component specifies a voltage rating of 250V and a mated stacking height of 13.4mm. Contact finish thickness is 3.94µin (0.100µm), while the PC tail length measures 3.20mm. It employs a positive lock mechanism and black housing.

Headers, Male Pins Feature Summary

• Dual-row vertical through-hole construction for secure PCB integration
• Gold-plated male pin contacts for reliable electrical performance
• Positive locking mechanism ensures stable mating connection

Headers, Male Pins Applications

• High-density electronic circuit board interconnections
• Industrial control system signal routing
• Consumer electronics internal wiring harnesses

Headers, Male Pins Procurement Notes

Verify the specific datasheet version against the manufacturer's official website before finalizing design specifications. Confirm that the required current rating aligns with the selected wire gauge, as ratings vary based on conductor size. Ensure the target application environment supports the specified 250V voltage limit and mechanical stacking height constraints.

Headers, Male Pins Selection Notes

Select this component when a compact 2.00mm pitch dual-row header is required for vertical assembly. The gold plating makes it suitable for applications demanding low contact resistance and corrosion resistance. Verify that the 14-position count matches the circuit requirements and that the through-hole footprint fits the available PCB space without interfering with adjacent components.

Headers, Male Pins Part Context

This part belongs to Molex’s iGrid series, which focuses on high-density interconnect solutions. The series is engineered for applications requiring robust signal transmission in confined spaces. As an active product, it remains a standard option for modern electronic designs needing reliable vertical headers with precise pitch tolerances.

Headers, Male Pins Replacement Considerations

Cross-reference compatible parts using the same 2.00mm pitch, dual-row, 14-position specification. Ensure substitute headers match the vertical orientation, through-hole termination style, and positive lock feature to maintain mechanical compatibility.
