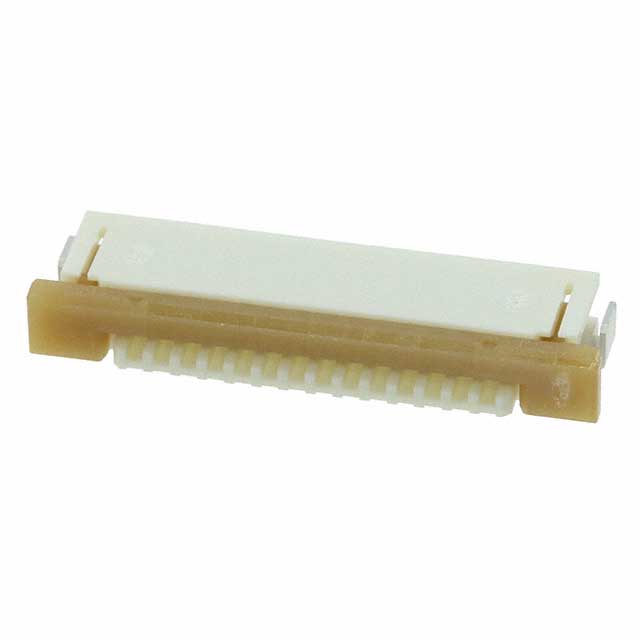

FFC, FPC (Flat Flexible) Connector Assemblies 522711479 product image

522711479

$1.29

Description：CONN FPC BOTTOM 14POS 1MM R/A
Series：52271
Mfr：Molex
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:a25448f22459 Category: FFC, FPC (Flat Flexible) Connector Assemblies Brand: Molex

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

522711479 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Molex. Its product description is CONN FPC BOTTOM 14POS 1MM R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for 522711479

Description：CONN FPC BOTTOM 14POS 1MM R/A
Series：52271
Mfr：Molex
Package：Tape & Reel (TR),Cut Tape (CT)
Flat Flex Type：FPC
Mounting Type：Surface Mount, Right Angle
Connector/Contact Type：Contacts, Bottom
Number of Positions：14
Pitch：0.039" (1.00mm)
Termination：Solder
FFC, FCB Thickness：0.30mm
Height Above Board：0.118" (3.00mm)
Locking Feature：Slide Lock
Cable End Type：Tapered
Contact Material：Phosphor Bronze
Contact Finish：Tin Bismuth
Housing Material：Polyamide (PA46), Nylon 4/6
Actuator Material：Polyphenylene Sulfide (PPS)
Features：Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating：50V
Operating Temperature：-40°C ~ 85°C
Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for 522711479

522711479

Explore related parts through FFC, FPC (Flat Flexible) Connectors, Connectors, Interconnects, all product categories, ChipApex homepage.

Online and offline orders are supported. If the item is available for online purchase, you can place it in the cart; for wholesale pricing, please contact our product manager for a quote.

Payment Method

Payment methods: T/T, WeChat Pay, credit cards, Google Pay, Apple Pay . Buyer covers shipping, fees, duties, and taxes; contact our product manager if you need a contract/procurement process.

Delivery time

In-stock items usually ship within 24 hours. Otherwise, shipment is arranged 1 to 2 days after the items arrive at our warehouse. Timing depends on destination and shipping method.

Freight calculation

Freight cost depends on destination, package size, and weight . We offer shipping options via DHL, FedEx, UPS, and TNT , and can ship using your freight account upon request.

Mode of Transportation

We ship via DHL, FedEx, UPS, and TNT. If you prefer a specific logistics provider, we can ship using your designated carrier.

Return and Refund

Returns are accepted within 60 days of invoice with RMA approval. Items must be resalable; original invoice and test report are required. No returns for customer errors.

522711479

$1.29
