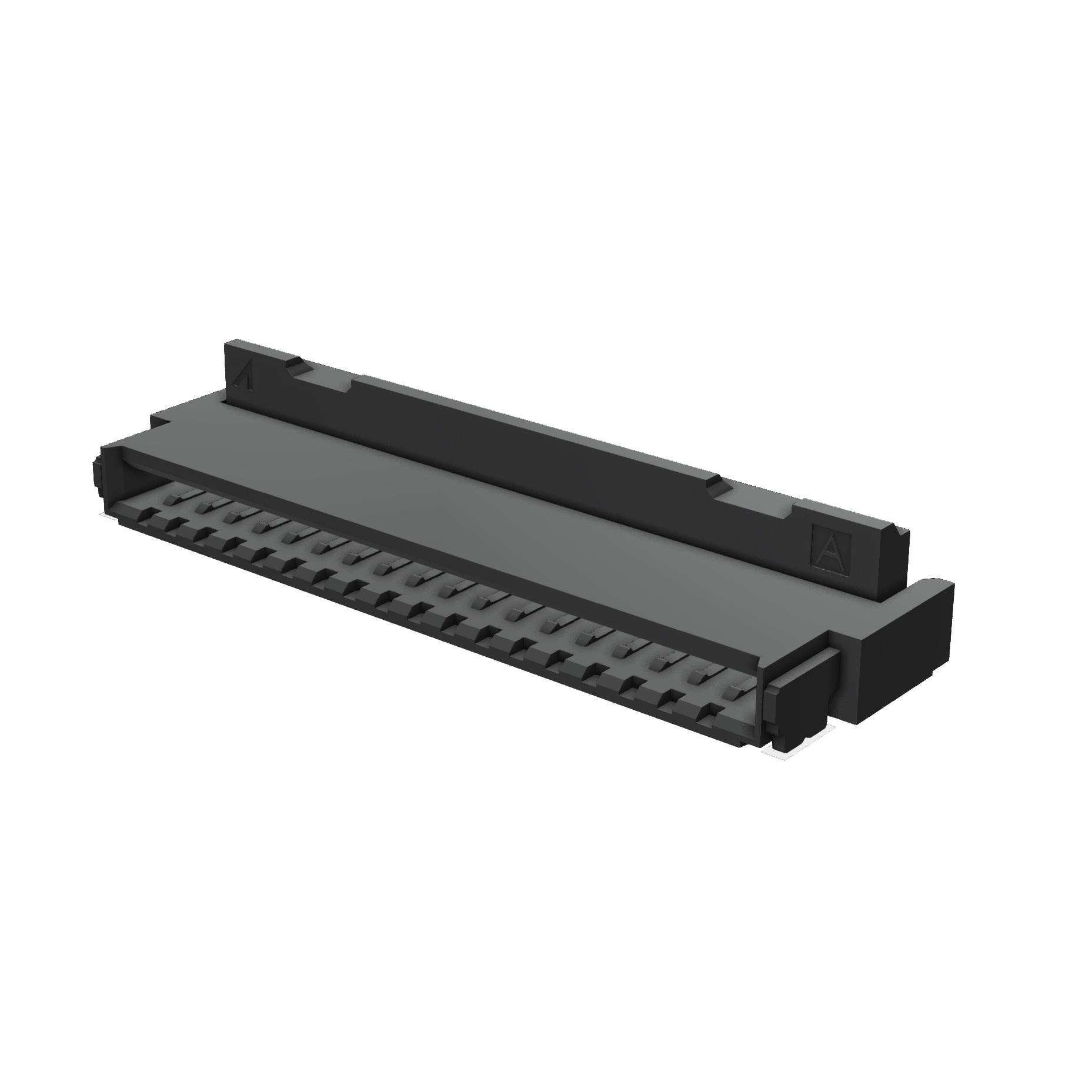

52519-0160M-001

52519-0160M-001 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Aces Connectors. Its product description is 16P, 0.5MM BACK FLIP FFC. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for 52519-0160M-001

• Description：16P, 0.5MM BACK FLIP FFC
• Series：-
• Mfr：Aces Connectors
• Package：Tape & Reel (TR),Cut Tape (CT)
• Flat Flex Type：FFC, FPC
• Mounting Type：Surface Mount, Right Angle
• Connector/Contact Type：Contacts, Top and Bottom
• Number of Positions：16
• Pitch：0.020" (0.50mm)
• Termination：Solder
• FFC, FCB Thickness：0.30mm
• Height Above Board：0.039" (1.00mm)
• Locking Feature：Flip Lock, Backlock
• Cable End Type：Notched, Tapered
• Contact Material：Copper Alloy
• Contact Finish：Gold
• Housing Material：Thermoplastic
• Actuator Material：Thermoplastic
• Features：Solder Retention
• Voltage Rating：50V
• Operating Temperature：-40°C ~ 85°C
• Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for 52519-0160M-001
