Headers, Male Pins Overview

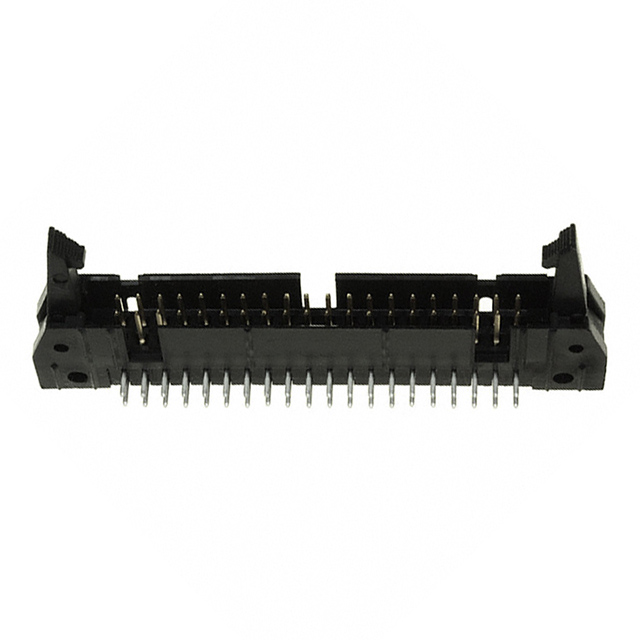

The TE Connectivity AMP Connectors part number 5499786-9 is a right-angle, through-hole header connector from the AMP-LATCH series. It features 40 positions with a 2.54 mm (0.1 inch) centerline spacing. The connector utilizes gold or gold-pallium contact finish for mating surfaces and tin plating on posts. Rated at 1A per contact and 250VAC, it operates within a temperature range of -65°C to 105°C. The housing is black, UL94 V-0 rated, and includes long latches, keyways, and mounting flanges.

Headers, Male Pins Feature Summary

• AMP-LATCH series design with long locking latches for secure retention
• Right-angle through-hole solder termination for board-to-wire applications
• Gold or gold-pallium contact finish ensuring reliable signal transmission
• Integrated keyway and mounting flange for precise alignment and stability

Headers, Male Pins Applications

• Ribbon cable interconnections
• Wire-to-board connections in industrial equipment
• General electronic assemblies requiring high-density headers

Headers, Male Pins Procurement Notes

Verify the specific pin count and latch length against project requirements before ordering. Confirm that the right-angle orientation matches the PCB layout constraints. Ensure compatibility with mating connectors in the AMP-LATCH family. Check for any recent obsolescence notices from the manufacturer. Validate environmental ratings against operational conditions.

Headers, Male Pins Selection Notes

Select this component when a high-density, right-angle header is required for ribbon or wire harness connections. The AMP-LATCH system provides robust mechanical retention compared to standard headers. Consider the 2.54mm pitch for standard board spacing. Evaluate the need for long latches if vibration resistance is critical. Ensure the 1A current rating suffices for the intended circuit load.

Headers, Male Pins Part Context

This connector belongs to the AMP-LATCH Universal Headers family, designed for reliable wire-to-board and ribbon cable applications. The series is known for its secure locking mechanism and versatility in various electronic environments. TE Connectivity manufactures these components to meet strict quality standards for industrial and commercial electronics.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other AMP-LATCH series headers with matching 2.54mm pitch and 40 positions. Ensure replacement parts maintain the right-angle configuration and through-hole termination style. Verify that alternative vendors offer equivalent latch lengths and contact finishes.
