5600201420

Headers, Male Pins Overview

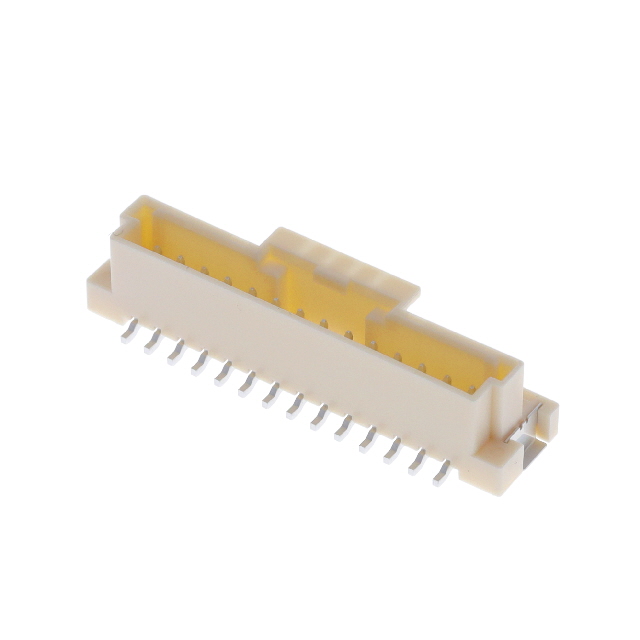

The Molex 560020-1420 is a DuraClik series wire-to-board header featuring 14 positions with a 2 mm pitch. It utilizes a single row of male pin contacts with tin plating, housed in natural polyamide (PA). Designed for surface mount (SMD/SMT) installation at a straight angle, the connector supports up to 3 A current and 125 V voltage. The shrouded design ensures secure mating, while the housing meets UL 94 V-0 flammability standards. Operating temperatures range from -40°C to +105°C.

Headers, Male Pins Feature Summary

• Shrouded header design provides robust PCB retention and secure mating alignment
• Surface mount termination facilitates automated assembly processes
• Tin-plated copper alloy contacts ensure reliable signal transmission

Headers, Male Pins Applications

• Wire-to-board signal interconnection
• Automotive electronic systems
• High-vibration industrial equipment
• Consumer electronics manufacturing

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required 14-position configuration and 2 mm pitch specifications. Confirm that the surface mount package type aligns with your PCB footprint requirements. Ensure the operating temperature range of -40°C to +105°C meets your environmental conditions. Check for RoHS compliance documentation if required by your supply chain standards.

Headers, Male Pins Selection Notes

Select this component when a vertical, shrouded header is required for space-constrained applications. The 2 mm pitch offers a balance between density and manufacturability. Consider the SMT mounting style for high-volume production lines. The DuraClik series features are suitable for environments requiring resistance to shock and vibration during operation.

Headers, Male Pins Part Context

This component belongs to the Molex 560020 series, which focuses on compact wire-to-board solutions. The series is engineered for durability in harsh conditions, supporting significant power delivery to peripheral devices. It represents a standard interconnect solution within Molex's automotive and industrial product portfolios, emphasizing reliability and signal integrity.

Headers, Male Pins Replacement Considerations

Consult official Molex substitution guides for compatible headers within the same series or alternative pitches. Verify mechanical compatibility including board thickness and mating height before replacing.
