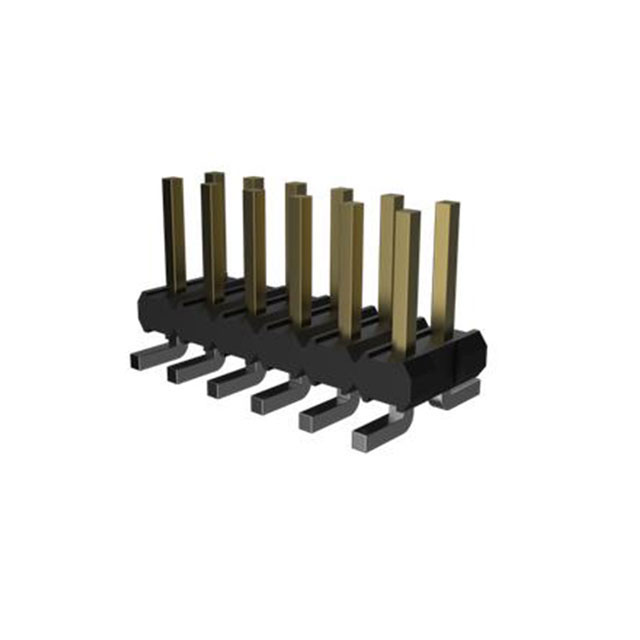

57202-F53-05A09LF

57202-F53-05A09LF is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN HEADER SMD 10POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 57202-F53-05A09LF

• Description：CONN HEADER SMD 10POS 2MM
• Series：Minitek® 2.00mm
• Mfr：Amphenol ICC (FCI)
• Package：Tape & Reel (TR)
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.079" (2.00mm)
• Number of Positions：10
• Number of Rows：2
• Row Spacing - Mating：0.079" (2.00mm)
• Number of Positions Loaded：9
• Style：Board to Board
• Shrouding：Unshrouded
• Mounting Type：Surface Mount
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Length - Mating：0.138" (3.50mm)
• Contact Length - Post：-
• Overall Contact Length：-
• Insulation Height：-
• Contact Shape：Square
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：Flash
• Contact Finish - Post：Tin
• Contact Material：Copper Alloy
• Insulation Material：Thermoplastic
• Features：Pick and Place
• Operating Temperature：-
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Black
• Current Rating (Amps)：2A (AC/DC)
• Voltage Rating：200V (AC/DC)

Headers, Male Pins datasheet and documents for 57202-F53-05A09LF
