57202-G52-03LF

Headers, Male Pins Overview

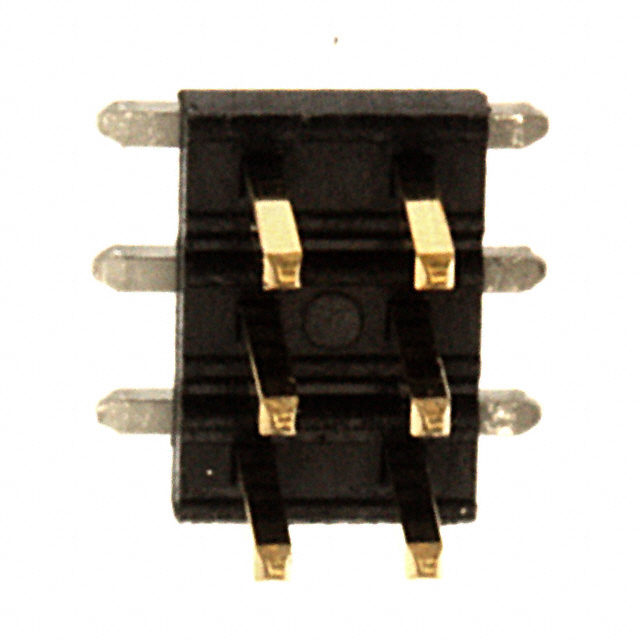

The Amphenol ICC (FCI) 57202-G52-03LF is a Minitek series unshrouded header connector designed for surface mount applications. It features a 2-row configuration with 6 positions and a 2 mm pitch. The contacts are gold-plated copper alloy pins with a mating post length of 2 mm, rated for 3 A current and 200 V voltage. The housing is black thermoplastic, operating between -55°C and +125°C.

Headers, Male Pins Feature Summary

• Surface mount termination style for automated PCB assembly
• Unshrouded design with straight mounting angle
• Gold contact plating for reliable signal transmission

Headers, Male Pins Applications

• Board-to-board interconnections
• General electronic equipment
• Industrial control systems

Headers, Male Pins Procurement Notes

Verify the specific suffix 'LF' to confirm lead-free compliance status as per manufacturer documentation. Confirm the exact pin count and row configuration against the schematic requirements. Ensure the surface mount footprint matches the specified 2 mm pitch dimensions for proper placement.

Headers, Male Pins Selection Notes

Select this component for low-profile board-to-board connections requiring a 2 mm pitch. The unshrouded design allows for compact stacking but requires precise alignment during mating. Verify that the 3 A current rating meets the circuit load requirements and that the operating temperature range suits the deployment environment.

Headers, Male Pins Part Context

This part belongs to the Minitek family of connectors from Amphenol FCI. The series provides various configurations for wire-to-board and board-to-board applications. The 57202 prefix indicates a standard header format within the product line.

Headers, Male Pins Replacement Considerations

Cross-reference with other 57202 series variants such as 57202-G52-04A01LF or 57202-G52-06ALF if different position counts are required. Ensure any substitute maintains the same 2 mm pitch and surface mount termination type.
