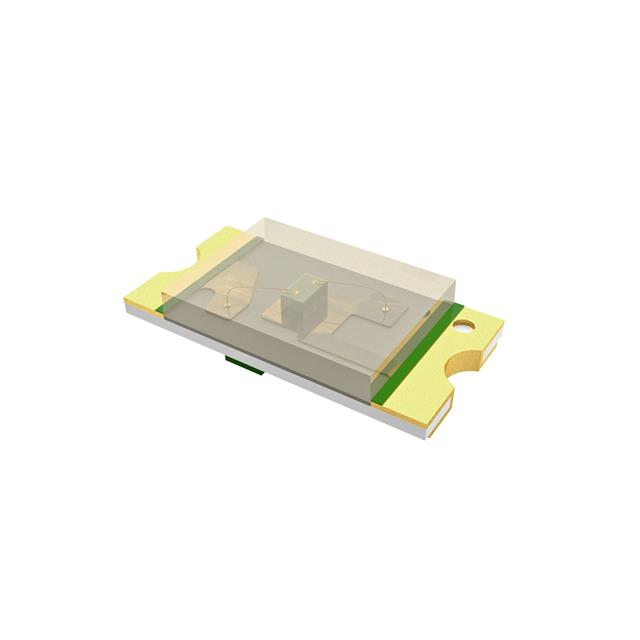

598-8N20-107F

$0.23

Description：LED ORANGE/RED CLEAR 0603 SMD
Series：598
Mfr：Dialight
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:eb545788e736 Category: LED Indication - Discrete Brand: Dialight

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

598-8N20-107F is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Dialight. Its product description is LED ORANGE/RED CLEAR 0603 SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for 598-8N20-107F

Description：LED ORANGE/RED CLEAR 0603 SMD
Series：598
Mfr：Dialight
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Orange, Red
Configuration：-
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：207.5mcd
Lens Style：Rectangle with Flat Top
Lens Size：1.10mm x 0.80mm
Voltage - Forward (Vf) (Typ)：2V
Current - Test：20mA
Viewing Angle：140°
Mounting Type：Surface Mount
Wavelength - Dominant：615nm ~ 630nm
Wavelength - Peak：-
Features：-
Package / Case：0603 (1608 Metric)
Supplier Device Package：603
Size / Dimension：1.60mm L x 0.80mm W
Height (Max)：0.35mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for 598-8N20-107F

598-8N20-107F

LED Indication - Discrete Part Context

The Dialight 598-8N20-107F is a single-color surface-mount LED belonging to the 598 series. It is designed for SMD/SMT installation and typically features a rectangular lens with water-clear transparency. The component is part of a standardized family of low-profile indicators, sharing common packaging formats such as reel or cut tape for automated assembly processes.
