5988A20107F

LED Indication - Discrete Overview

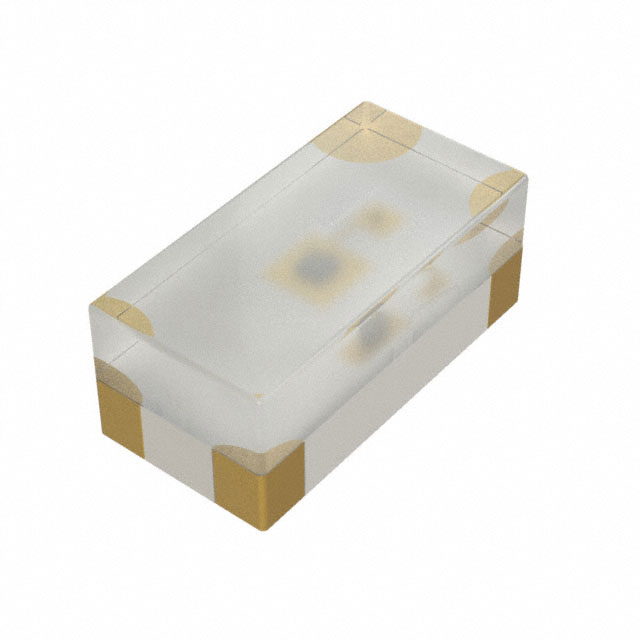

The Dialight 5988A20107F is a single-color red surface-mount LED in a 0402 (1006 Metric) package. It emits light at a typical wavelength of 625 nm with a forward voltage of 1.8 V. The device offers a luminous intensity of 47 mcd and a viewing angle of 140 degrees, operating at a forward current of 5 mA.

LED Indication - Discrete Feature Summary

• Compact 0402 surface-mount form factor for space-constrained designs
• Wide 140-degree viewing angle for broad visibility
• Red illumination optimized for status indication

LED Indication - Discrete Applications

• Panel status indicators
• Consumer electronics front panels
• Medical device signaling

LED Indication - Discrete Procurement Notes

Verify the specific datasheet revision to confirm electrical tolerances and moisture sensitivity levels. Ensure the ordering suffix matches the required tape-and-reel packaging configuration. Cross-reference the manufacturer part number against authorized distributor catalogs to confirm authenticity and traceability before finalizing procurement orders.

LED Indication - Discrete Selection Notes

Select this component when a low-profile red indicator is required for high-density PCB layouts. The 0402 package suits applications with strict spatial limitations. Consider the 140-degree viewing angle for visibility requirements and the 1.8 V forward voltage for compatibility with low-voltage logic drivers.

LED Indication - Discrete Part Context

This component belongs to Dialight's discrete LED portfolio, specifically designed for surface-mount technology. The 5988 series provides reliable optical performance in small footprints, catering to modern electronics manufacturing trends that prioritize miniaturization and automated assembly processes.

LED Indication - Discrete Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify pinout compatibility and thermal characteristics if considering alternative manufacturers for this specific application.
