5990291007F

LED Indication - Discrete Overview

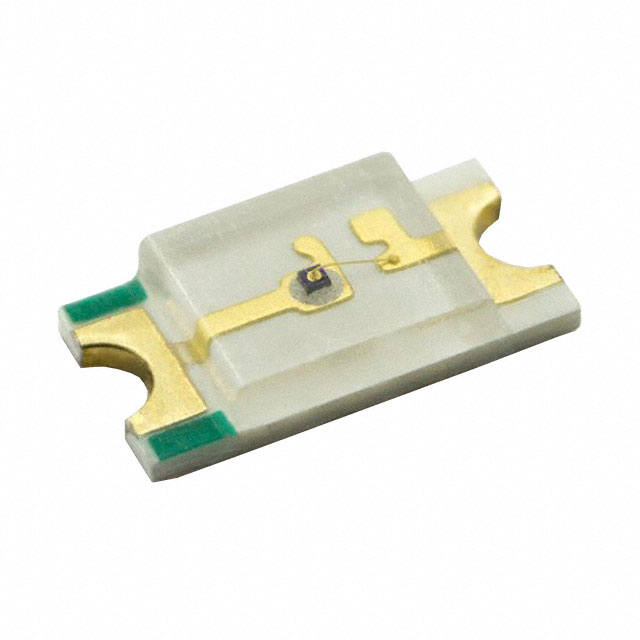

The Dialight 5990291007F is a single-color blue surface-mount LED from the 599 MicroLED series. It features a 1206 (3216 metric) rectangular package with dimensions of 3.20 mm length, 1.60 mm width, and a maximum height of 0.80 mm. The component emits light at a primary wavelength of 470 nm with a viewing angle of 140 degrees. Electrical characteristics include a forward voltage of 3.2 V and a test current of 20 mA. The lens is diffused and tinted, providing an optical intensity of 105 mcd.

LED Indication - Discrete Feature Summary

• High-intensity blue emission optimized for visibility in indicator applications
• Wide 140-degree viewing angle ensures broad signal coverage
• Robust rectangular SMD package design suitable for automated assembly

LED Indication - Discrete Applications

• Electronic device status indicators
• Panel mount signaling systems
• Consumer electronics display modules

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix to confirm lens tinting and binning requirements. Confirm moisture sensitivity level (MSL 3) handling procedures during storage and reflow soldering. Ensure compatibility with standard 1206 footprint land patterns on the PCB layout.

LED Indication - Discrete Selection Notes

Select this part for applications requiring high-brightness blue indication in compact spaces. The 1206 form factor offers a balance between thermal performance and board space efficiency compared to smaller packages like 0603 or 0402.

LED Indication - Discrete Part Context

This component belongs to the Dialight 599 MicroLED series, which provides various single-color options including red, green, yellow, and white. The series is designed for general-purpose indication across industrial and consumer markets.

LED Indication - Discrete Replacement Considerations

Cross-reference with other 599-series variants such as 599-0120-007F for different colors. Verify mechanical compatibility with existing footprints when substituting.
