61-238/LK2C-B28322FAGB2/ET

Overview

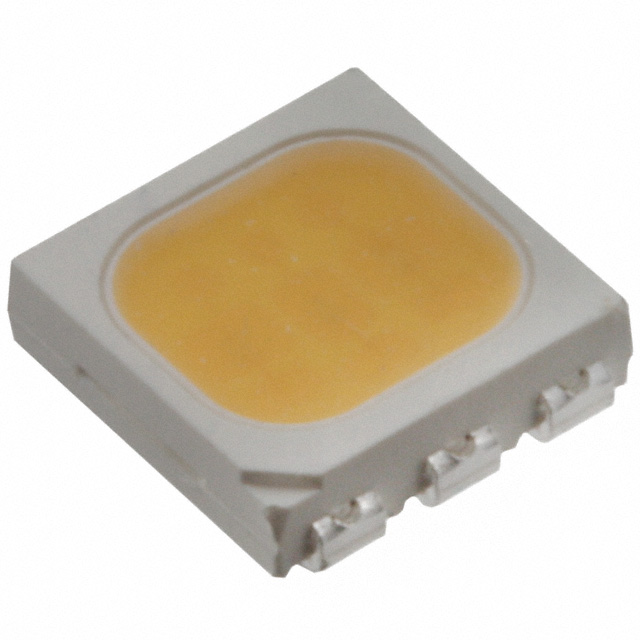

The Everlight 61-238/LK2C-B28322FAGB2/ET is a discrete surface-mount LED emitting cool white light. It utilizes a 6-SMD, J-Lead (6-PLCC) package with dimensions of 5.00mm x 5.00mm and a maximum height of 1.50mm. The component features a water-clear lens and operates at a typical forward voltage of 3.25V. It supports infrared reflow soldering methods and complies with RoHS3 standards.

Feature Summary

• Emits cool white light with a wide viewing angle for broad illumination coverage
• Utilizes a super-luminosity chip within a standard SMT package configuration
• Features a lead frame design with individual six-pin terminals for secure mounting

Applications

• General indicator lighting in electronic devices
• Backlighting applications requiring cool white spectrum
• Status indication on consumer electronics panels

Procurement Notes

Verify the specific color temperature designation against official datasheets, as the model suffix indicates warm white specifications while the base series often includes cool white variants. Confirm that the intended application aligns with the documented thermal and electrical characteristics to ensure proper integration into the target circuit design.

Selection Notes

Select this component for applications requiring a compact surface-mount form factor with standardized pin spacing. Ensure the design accommodates the specified forward voltage drop and current requirements. Verify compatibility with infrared reflow soldering profiles to maintain device integrity during assembly processes.

Part Context

This part belongs to the Everlight 61-238 series of single-color white LEDs. The series offers various color temperatures and lens options within a consistent 6-PLCC package footprint, allowing for flexible design choices while maintaining uniform mechanical mounting constraints across different product lines.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
