7016X5

LED Indication - Discrete Overview

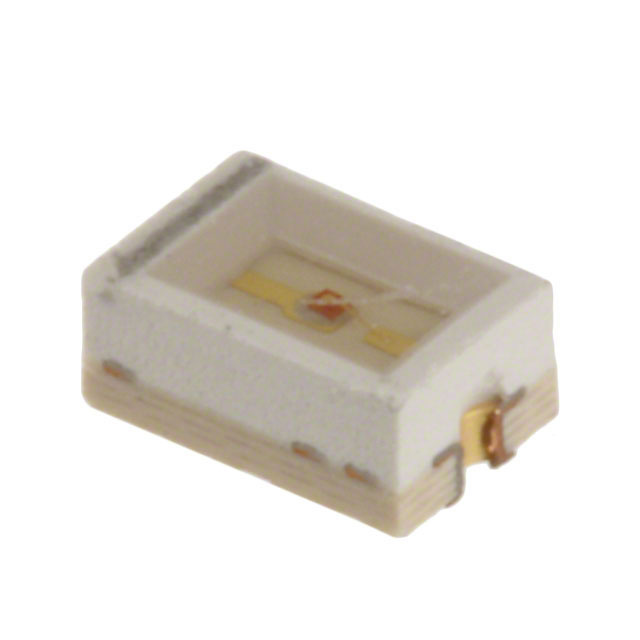

The VCC 7016X5 is a surface-mount LED indicator component manufactured by Visual Communications Company. It features a green light output with a forward voltage of 2.2V. The device utilizes a 3020 metric footprint, equivalent to the 1208 imperial size, measuring approximately 3.00mm by 2.49mm. This compact SMD package is designed for high-intensity indication in space-constrained applications.

LED Indication - Discrete Feature Summary

• Compact surface-mount design suitable for automated assembly processes
• High-intensity green light emission for clear visual signaling
• Optimized for backlighting and direct light pipe coupling applications

LED Indication - Discrete Applications

• Panel-mounted status indicators
• Backlighting for user interface elements
• Coupling to rigid or flexible light pipes

LED Indication - Discrete Procurement Notes

Verify the specific binning requirements for luminous intensity and chromaticity coordinates prior to ordering, as these parameters can vary within manufacturing tolerances. Confirm that the selected supplier provides components with appropriate RoHS compliance documentation. Ensure storage conditions maintain moisture sensitivity level integrity until reflow soldering occurs.

LED Indication - Discrete Selection Notes

Select this component when a small form factor is required for green indication. The 3020 footprint offers a balance between optical output and board space efficiency compared to larger packages. Consider thermal management capabilities if operating near maximum current limits, although typical operation remains within standard SMD LED parameters.

LED Indication - Discrete Part Context

This part belongs to VCC's range of high-performance surface-mount LEDs. The company specializes in indicator solutions for aerospace, medical, and industrial markets. The 7016 series represents their standard discrete SMD offerings, providing reliable performance across various environmental conditions.

LED Indication - Discrete Replacement Considerations

The 7016X5/7 variant integrates both green and yellow LEDs into a single package. Direct substitution requires verifying if dual-color functionality is necessary. Other generic 3020 green SMD LEDs may fit mechanically but will differ in optical characteristics and electrical ratings.
