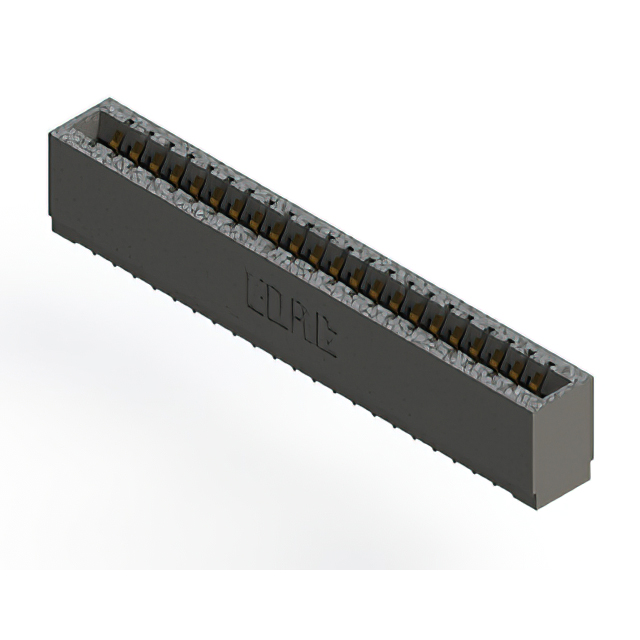

726-022-525-101

$5.43

Description：CONN EDGE SGL FMALE 22POS 0.125
Series：726
Mfr：EDAC Inc.
Package：Bulk

SKU:da2c91bb7fa9 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

726-022-525-101 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SGL FMALE 22POS 0.125. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 726-022-525-101

Description：CONN EDGE SGL FMALE 22POS 0.125
Series：726
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Single Edge
Gender：Female
Number of Positions/Bay/Row：22
Number of Positions：22
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：1
Pitch：0.125" (3.18mm)
Read Out：Single
Features：-
Mounting Type：Through Hole
Termination：Press-Fit
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：30.0µin (0.76µm)
Contact Type：Cantilever
Color：Black
Flange Feature：-
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 726-022-525-101

726-022-525-101

Edgeboard Connectors Overview

The EDAC Inc. 726-022-525-101 is a card edge connector from the 726 series, designed for single-row applications. It features 22 positions with female contacts and a 0.125-inch (3.18mm) pitch. The connector utilizes gold-plated cantilever contacts on a black thermoplastic polyester insulator. It supports through-hole termination via crimp or wire wrap methods. The unit accommodates board thicknesses between 0.054 and 0.070 inches.

Edgeboard Connectors Feature Summary

Single-row female contact configuration for standard card edge interfaces
Gold-plated cantilever contacts ensure reliable electrical connection
Thermoplastic polyester insulation provides structural stability
Supports through-hole mounting with crimp or wire wrap termination

Edgeboard Connectors Applications

General-purpose electronic circuit board interconnections
Industrial control system module insertion
Telecommunications equipment backplane connections

Edgeboard Connectors Procurement Notes

Verify component authenticity by checking manufacturer markings against official EDAC Inc. documentation. Confirm that the part number matches the specific single-row variant to avoid confusion with double-row equivalents. Ensure compliance with RoHS3 standards if required for your assembly process. Cross-reference the termination style to match your manufacturing capabilities for crimp or wire wrap processes.

Edgeboard Connectors Selection Notes

Select this component when a single-row interface with a 0.125-inch pitch is required. The 22-position count suits moderate density applications. Verify that the target PCB thickness falls within the specified 0.054 to 0.070-inch range. Consider the through-hole mounting requirement and available termination methods during design integration.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 726 series of edgeboard connectors. The series offers various position counts and row configurations. The 726-022-525-101 specifically addresses single-row needs with a 0.125-inch spacing. It complements other variants in the lineup that provide different pin counts or dual-row options for higher density requirements.
