740990609

$5.03

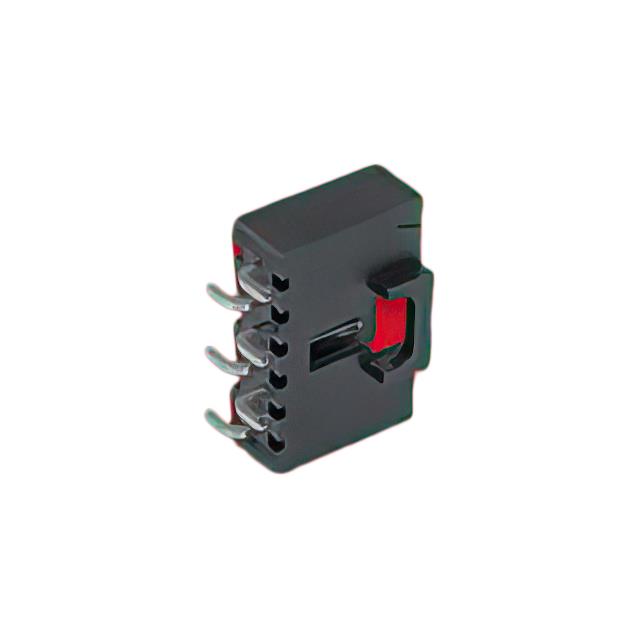

Description：CONN HEADER SMD 9POS 2.54MM
Series：SL 74099
Mfr：Molex
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:ef61ea560639 Category: Headers, Male Pins Brand: Molex

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

740990609 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Molex. Its product description is CONN HEADER SMD 9POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 740990609

Description：CONN HEADER SMD 9POS 2.54MM
Series：SL 74099
Mfr：Molex
Package：Tape & Reel (TR),Cut Tape (CT)
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：9
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Latch Holder
Contact Length - Mating：0.240" (6.10mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.450" (11.43mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：150.0µin (3.81µm)
Contact Finish - Post：Tin
Contact Material：Phosphor Bronze
Insulation Material：Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Features：Pick and Place
Operating Temperature：-
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：-
Voltage Rating：-

Headers, Male Pins datasheet and documents for 740990609

740990609

Headers, Male Pins Overview

The Molex 740990609 is a SL series wire-to-board header designed for surface mount applications. It features a single row configuration with nine circuits and vertical orientation. The connector utilizes tin plating on the contacts to ensure reliable electrical performance. This component is supplied in tape and reel packaging, which includes an integrated pick-and-place cap to facilitate automated assembly processes.

Headers, Male Pins Feature Summary

Surface mount construction for direct PCB attachment
Single row vertical design for space efficiency
Tin-plated contacts for conductivity
Integrated pick-and-place cap for automation

Headers, Male Pins Applications

Automated surface mount technology (SMT) assembly lines
Consumer electronics requiring compact interconnects
Industrial control boards with high-density layouts
Telecommunications equipment signal routing

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the requirement for a nine-position header with a pick-and-place cap. Confirm the surface mount orientation and tin plating specifications align with the target application's environmental and mechanical constraints before finalizing the order.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row vertical header is required for automated manufacturing. Ensure the PCB footprint supports the surface mount package type. Consider the nine-circuit count and tin plating suitability for the intended signal transmission requirements.

Headers, Male Pins Part Context

This part belongs to the Molex SL series of wire-to-board connectors. The series is characterized by its versatility in both through-hole and surface mount configurations. The 740990609 variant specifically addresses needs for high-volume automated production environments due to its specialized packaging and handling features.
