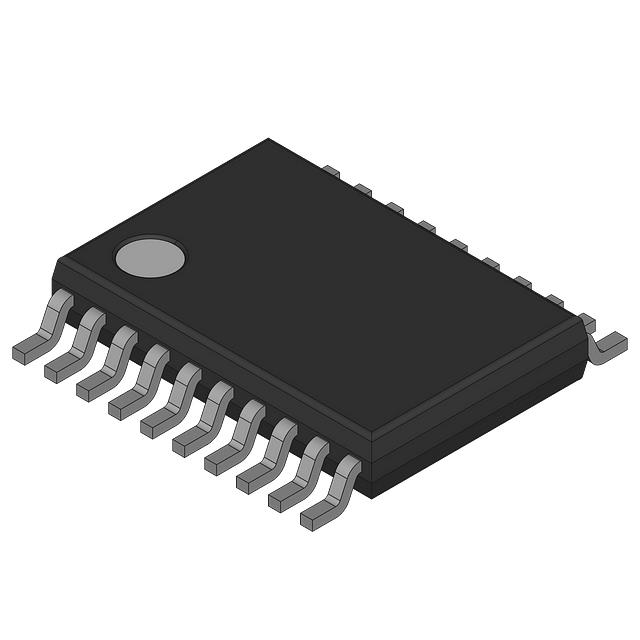

74HC244PW,112

Buffers, Drivers, Receivers, Transceivers Overview

The Nexperia 74HC244PW,112 is an octal buffer and line driver featuring three-state outputs. It operates within a supply voltage range of 2.0 V to 6.0 V. The device provides eight non-inverting inputs and corresponding outputs. It utilizes a TSSOP-20 surface-mount package. The component supports high-speed signal buffering with low power consumption characteristics typical of the HC logic family.

Buffers, Drivers, Receivers, Transceivers Feature Summary

• Octal configuration providing eight independent non-inverting buffers
• Three-state output capability for bus-oriented applications
• Wide operating voltage range supporting various system levels

Buffers, Drivers, Receivers, Transceivers Applications

• Memory address drivers
• Clock drivers
• Bus-oriented architectures

Buffers, Drivers, Receivers, Transceivers Procurement Notes

Verify current availability status as this specific part number may be subject to lifecycle changes or discontinuation. Confirm package type and electrical specifications against the official datasheet before integration. Ensure compatibility with existing design constraints regarding voltage levels and drive requirements.

Buffers, Drivers, Receivers, Transceivers Selection Notes

Select this component when an octal buffer with three-state control is required for bus systems. Consider the HC series performance characteristics and TSSOP-20 packaging constraints. Evaluate alternative variants if different voltage ranges or pinouts are necessary for the specific application environment.

Buffers, Drivers, Receivers, Transceivers Part Context

This component belongs to the standard 74HC logic family, widely used for general-purpose digital buffering. It serves as a fundamental building block in digital circuit design for signal isolation and driving capacity enhancement across multiple lines simultaneously.
