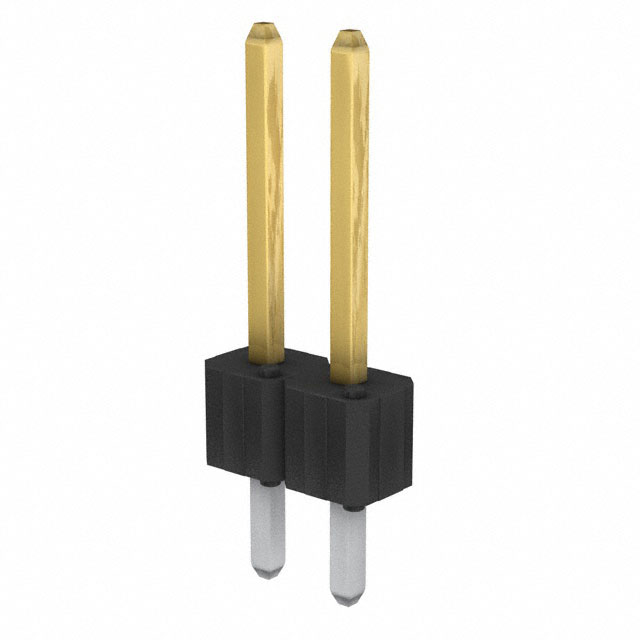

78229-102HLF

78229-102HLF is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN HEADER VERT 2POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 78229-102HLF

• Description：CONN HEADER VERT 2POS 2.54MM
• Series：BERGSTIK® II
• Mfr：Amphenol ICC (FCI)
• Package：Bulk
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.100" (2.54mm)
• Number of Positions：2
• Number of Rows：1
• Row Spacing - Mating：-
• Number of Positions Loaded：All
• Style：Board to Board
• Shrouding：Unshrouded
• Mounting Type：Through Hole
• Termination：Press-Fit, Solder
• Fastening Type：Push-Pull
• Contact Length - Mating：0.318" (8.08mm)
• Contact Length - Post：0.120" (3.05mm)
• Overall Contact Length：0.538" (13.67mm)
• Insulation Height：0.100" (2.54mm)
• Contact Shape：Square
• Contact Finish - Mating：Gold or Gold, GXT™
• Contact Finish Thickness - Mating：30.0µin (0.76µm)
• Contact Finish - Post：-
• Contact Material：Phosphor Bronze
• Insulation Material：Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
• Features：-
• Operating Temperature：-
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Black
• Current Rating (Amps)：-
• Voltage Rating：-

Headers, Male Pins datasheet and documents for 78229-102HLF
