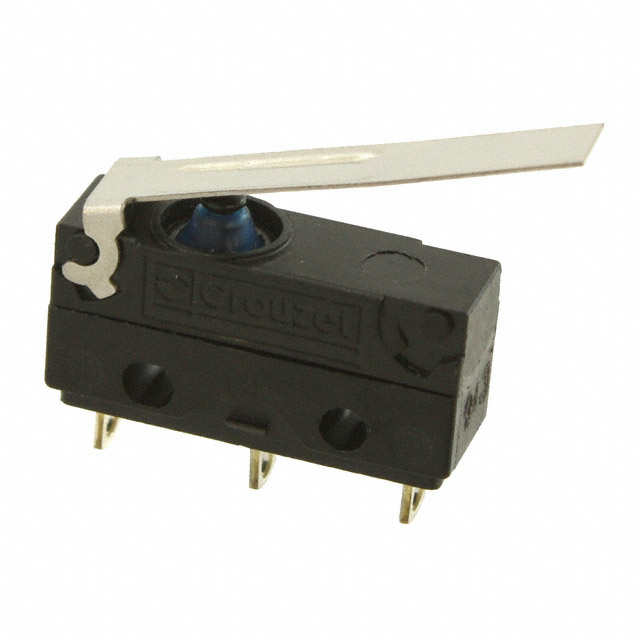

831810C2.BL

831810C2.BL is listed in the Limit Switches range at ChipApex. The manufacturer field lists Crouzet. Its product description is SWITCH SNAP ACTION SPDT 6A 250V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for 831810C2.BL

• Description：SWITCH SNAP ACTION SPDT 6A 250V
• Series：83180
• Mfr：Crouzet
• Package：Bulk
• Circuit：SPDT
• Switch Function：On-Mom
• Current Rating (Amps)：6A (AC/DC)
• Voltage Rating - AC：250 V
• Actuator Type：Lever, Straight
• Mounting Type：Chassis Mount
• Termination Style：Solder Lug
• Ingress Protection：IP67 - Dust Tight, Waterproof
• Features：-
• Operating Force：64gf
• Release Force：20gf
• Operating Position：0.437" (11.1mm)
• Pretravel：-
• Differential Travel：0.016" (0.4mm)
• Overtravel：0.094" (2.4mm)
• Operating Temperature：-40°C ~ 125°C
• Voltage Rating - DC：24 V

Limit Switches datasheet and documents for 831810C2.BL
