833-020-521-604

Edgeboard Connectors Overview

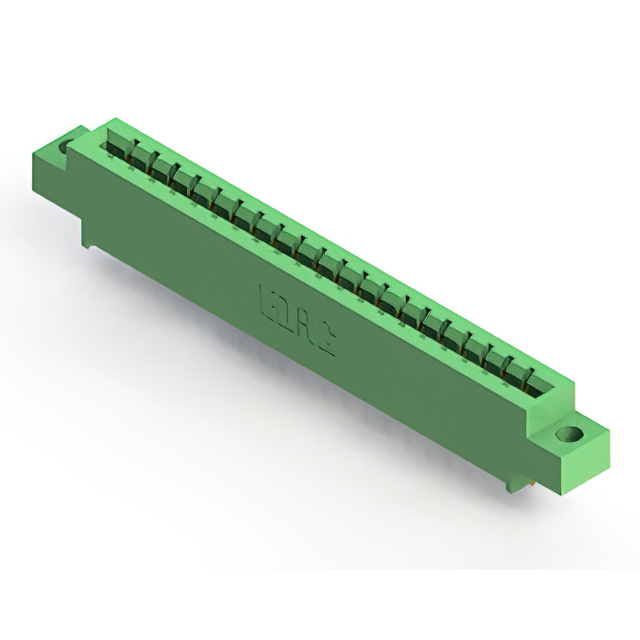

The EDAC Inc. 833-020-521-604 is a standard card edge connector from the 833 series, designed for high-temperature environments. It features 20 positions with a 3.96 mm (0.156 inch) contact spacing and a 5.08 mm row spacing. The connector accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). It utilizes gold-plated copper alloy contacts and a Diallyl Phthalate (DAP) insulator body. Rated for 3 A current, it offers an insulation resistance of 5 GOhms and operates within a temperature range of -40°C to +125°C.

Edgeboard Connectors Feature Summary

• High-temperature resistant construction using Diallyl Phthalate (DAP) insulator material
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Vertical panel mount installation style for secure board retention

Edgeboard Connectors Applications

• Industrial control systems requiring thermal stability
• Automotive electronics applications
• Aerospace and military equipment
• Medical devices
• Communication infrastructure

Edgeboard Connectors Procurement Notes

Verify the specific manufacturer part number against official EDAC documentation to confirm compatibility with your design requirements. Ensure that the operating environment stays within the specified -40°C to +125°C range. Confirm that the PCB thickness matches the 1.57 mm acceptance criteria. Check for any regional distribution restrictions or supply limitations before finalizing procurement plans.

Edgeboard Connectors Selection Notes

Select this component when high-temperature performance is critical for the application. The DAP insulator material provides superior thermal stability compared to standard thermoplastics. The vertical panel mount style is suitable for chassis-mounted interfaces. Verify that the 3.96 mm pitch aligns with the target card edge layout. Consider the 3 A current rating for power distribution needs.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 833 series, which is specifically engineered for high-temperature operations. The series is characterized by its use of DAP insulators and robust metal contacts. It serves as a reliable interface solution for harsh environments where standard connectors might fail due to thermal stress. The 20-position configuration provides a balanced density for various electronic assemblies.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult EDAC directly for potential equivalents or cross-reference options based on specific electrical and mechanical requirements.
