Edgeboard Connectors Overview

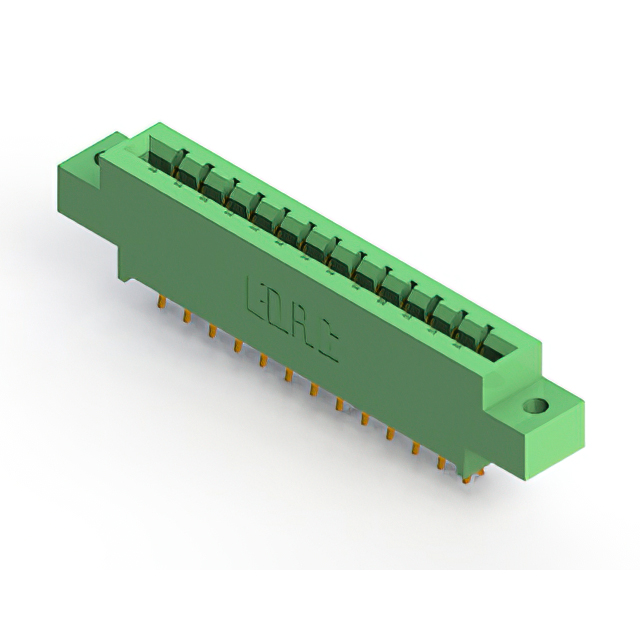

The EDAC Inc. part number 833-026-556-802 is a dual edge card edge connector designed for high-temperature applications. It features 26 positions with female contacts and a 0.156-inch (3.96mm) contact spacing. The connector utilizes gold-plated terminals to ensure reliable signal transmission in demanding environments.

Edgeboard Connectors Feature Summary

• Dual edge configuration supports robust board-to-board connectivity
• Gold-plated female contacts provide corrosion resistance and stable electrical performance
• High-temperature series construction ensures durability under thermal stress

Edgeboard Connectors Applications

• Industrial control systems requiring thermal stability
• Telecommunications infrastructure equipment
• Medical device internal circuitry connections

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm plating thickness, insulator color, and termination style. Ensure compatibility with mating card edge dimensions before procurement. Cross-reference the manufacturer's latest datasheet to validate environmental ratings and mechanical specifications for your specific deployment scenario.

Edgeboard Connectors Selection Notes

Select this component when high-temperature resilience and dual-edge reliability are required. The 0.156-inch pitch accommodates standard density layouts. Evaluate the green insulator material properties against your system's thermal management requirements to ensure long-term operational integrity under sustained heat exposure.

Edgeboard Connectors Part Context

This component belongs to the EDAC 833 Series, which specializes in high-temperature card edge connectors. The series is engineered for rigorous industrial and communication sectors where standard connectors may fail due to thermal cycling or elevated ambient temperatures.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include 833-026-556-203. Verify pin count and pitch compatibility before considering alternative series replacements.
