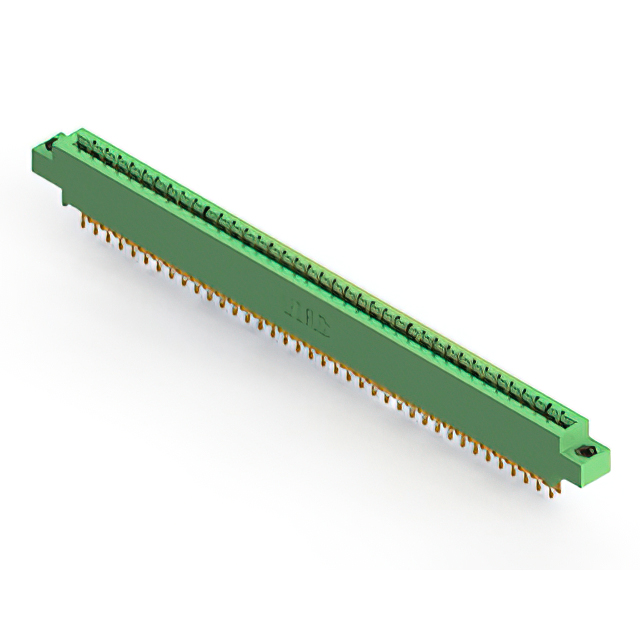

833-076-555-808

$66.98

Description：CONN EDGE DUAL FMALE 76POS 0.156
Series：833
Mfr：EDAC Inc.
Package：Box

SKU:5c11dfecf14e Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

833-076-555-808 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 76POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 833-076-555-808

Description：CONN EDGE DUAL FMALE 76POS 0.156
Series：833
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：38
Number of Positions：76
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：Card Extender
Mounting Type：Board Edge, Straddle Mount
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Top Mount Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 125°C

Edgeboard Connectors datasheet and documents for 833-076-555-808

833-076-555-808

Edgeboard Connectors Overview

The EDAC Inc. 833-076-555-808 is a standard card edge connector from the 833 series, designed for panel mount applications. It features a dual female configuration with 76 positions arranged in two rows. The component utilizes a 3.96 mm pitch and supports a board thickness of 1.57 mm. Contacts are gold-plated copper alloy, rated for 3 A current at an insulation resistance of 5 GOhms. Operating temperatures range from -40 C to +125 C, with a Diallyl Phthalate (DAP) housing.

Edgeboard Connectors Feature Summary

Dual row receptacle design for high-density signal routing
Gold-plated contacts ensure reliable electrical conductivity
DAP housing material provides structural stability

Edgeboard Connectors Applications

Medical interconnect systems
Agricultural technology equipment
Industrial control panels

Edgeboard Connectors Procurement Notes

Verify the specific suffix against official EDAC documentation to confirm exact pin count, orientation, and termination style. Confirm RoHS compliance status directly with the manufacturer or authorized distributor prior to procurement. Ensure the selected variant matches the required PCB thickness and mounting angle specifications for the target application.

Edgeboard Connectors Selection Notes

Select this connector when a vertical or right-angle panel mount solution is required for double-sided edge cards. Verify that the 3.96 mm pitch aligns with the PCB layout constraints. Consider the 125 C maximum operating temperature for thermal management requirements. Ensure the 76-position capacity meets the circuit density needs without requiring multiple connectors.

Edgeboard Connectors Part Context

This component belongs to the EDAC 833 series of standard card edge connectors. The series offers various configurations for panel-mounted applications. EDAC specializes in interconnect solutions for medical, agricultural, and industrial sectors, providing robust connectivity options for demanding environments.
