833-084-544-208

Edgeboard Connectors Overview

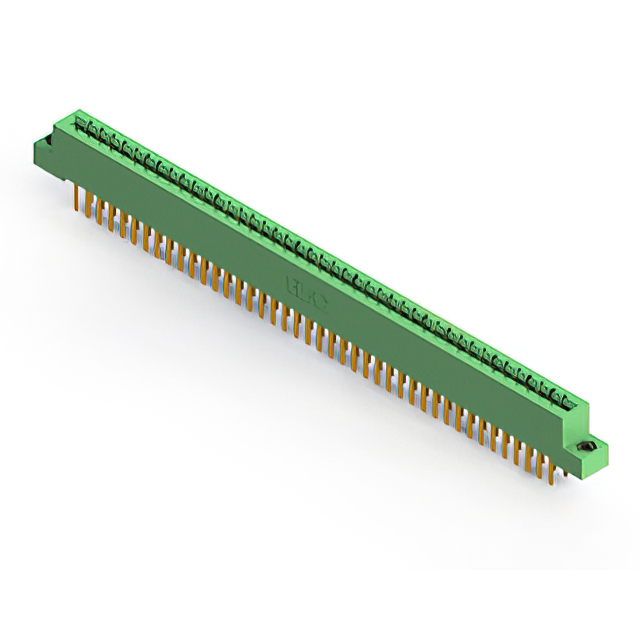

The EDAC 833-084-544-208 is a standard card edge connector from the 833 series, designed for dual-edge board insertion. It features 84 positions with a contact spacing of 0.156 inches (3.96 mm). The connector utilizes gold-plated contacts to ensure reliable signal transmission and low contact resistance. It is configured as a female connector suitable for mating with standard card edge PCBs.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration for secure board retention
• Gold-plated contacts for enhanced conductivity and corrosion resistance
• Standard 0.156-inch pitch for compatibility with industry-standard cards

Edgeboard Connectors Applications

• Medical interconnect solutions
• Agricultural technology equipment
• Industrial control systems

Edgeboard Connectors Procurement Notes

Verify the specific part number suffix against official EDAC documentation to confirm exact pin count, plating thickness, and insulator color specifications. Ensure that the ordering information matches the required dual-edge configuration and panel mount style before procurement to avoid integration errors in final assembly.

Edgeboard Connectors Selection Notes

Select this component when a high-density connection is required for dual-sided card edge applications. The 84-position capacity supports complex circuitry within a standard 3.96 mm pitch footprint. Consider the gold plating for environments requiring long-term reliability and stable electrical performance over repeated insertions.

Edgeboard Connectors Part Context

This component belongs to the EDAC 833 series of standard card edge connectors. The series is characterized by robust construction and versatile mounting options, including vertical panel styles. It serves as a critical interface between printed circuit boards and backplanes or chassis-mounted sockets in various electronic assemblies.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for direct equivalents. Generic replacements may not match the precise 0.156-inch pitch or dual-edge mechanical tolerances required for proper fit and function.
