845-018-520-102

Edgeboard Connectors Overview

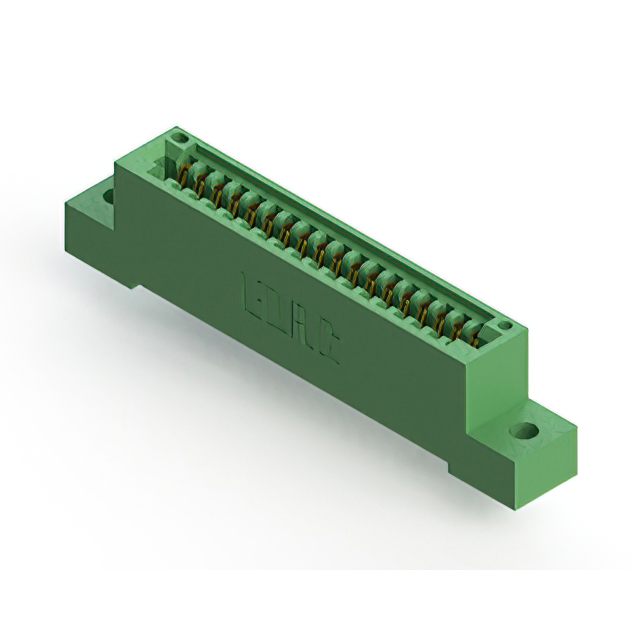

The EDAC Inc. 845-018-520-102 is a standard card edge connector featuring 18 positions with a 2.54 mm pitch. It utilizes a single row of female contacts made from copper alloy and finished with gold plating. Designed for panel mounting in a vertical orientation, the unit employs solder pin termination. The insulator body is constructed from Diallyl Phthalate (DAP) and is green in color. It accommodates printed circuit boards with a nominal thickness of 1.57 mm.

Edgeboard Connectors Feature Summary

• Single row configuration with female contact type
• Vertical panel mount installation style
• Gold-plated copper alloy contacts
• Solder pin termination method

Edgeboard Connectors Applications

• Panel-mounted electronic assemblies
• Industrial control systems
• Communication equipment interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to ensure correct contact count and termination style. Confirm that the target application requires a single-row female connector compatible with 1.57 mm board thickness. Check RoHS compliance status against current regulatory requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a vertical, single-edge connection is required for 18 signals. Ensure the design supports solder pin termination rather than wire wrap. Verify that the operating environment remains within the specified temperature range and that the DAP housing material meets chemical resistance needs.

Edgeboard Connectors Part Context

This part belongs to the EDAC 845 series, which provides high-temperature rated card edge connectors. The series offers various position counts and termination options to support diverse industrial applications requiring reliable signal transmission through standardized card edge interfaces.

Edgeboard Connectors Replacement Considerations

Consult official EDAC documentation for direct substitutes within the 845 series. Verify mechanical dimensions and electrical ratings match before considering alternative manufacturers.
