845-024-525-101

Edgeboard Connectors Overview

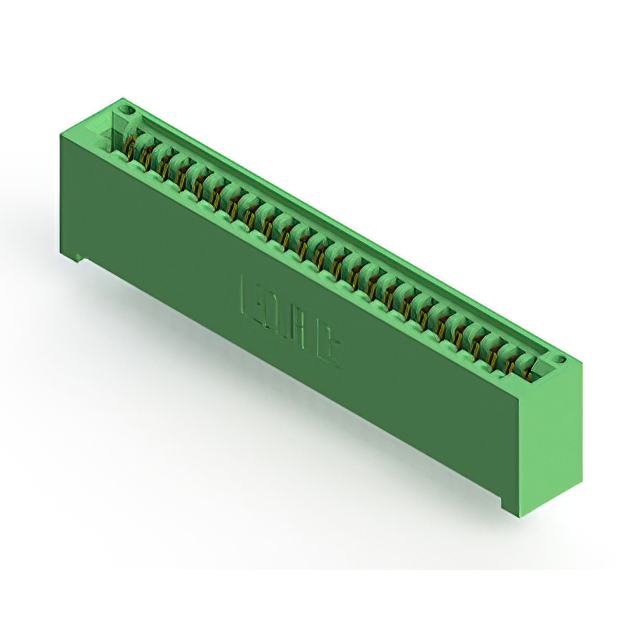

The EDAC Inc. 845-024-525-101 is a standard single-row card edge connector designed for vertical panel mounting. It features 24 positions with a 2.54 mm (0.100 inch) pitch and utilizes gold-plated copper alloy contacts. The unit employs a solder pin termination method and is constructed with a Diallyl Phthalate (DAP) housing. Rated for 3 A current, it operates within a temperature range of -40°C to +125°C and supports PCB thicknesses between 1.37 mm and 1.78 mm.

Edgeboard Connectors Feature Summary

• Vertical panel mount configuration for secure structural integration
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Diallyl Phthalate (DAP) insulation provides thermal stability

Edgeboard Connectors Applications

• Industrial control system interface connections
• Telecommunications equipment backplane interconnects
• Automotive electronic module attachment points

Edgeboard Connectors Procurement Notes

Verify the specific suffix code against official EDAC documentation to confirm exact termination style and contact plating specifications. Ensure compatibility with target PCB stack-up dimensions before procurement. Confirm RoHS compliance status through the manufacturer's latest datasheet or component certification records.

Edgeboard Connectors Selection Notes

Select this model when a single-row vertical connection is required for modules up to 24 signals. Verify that the mating card thickness falls within the specified 1.37 mm to 1.78 mm range. Confirm that the operating environment remains within the -40°C to +125°C limits and that the 3 A current rating meets circuit requirements.

Edgeboard Connectors Part Context

This component belongs to the EDAC 845 series, which specializes in high-reliability card edge connectors. The series offers various position counts and termination options to accommodate diverse board-to-board and board-to-panel applications in demanding environments.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC ordering guide for direct substitutes within the 845 series. Cross-reference position count, pitch, and termination type to ensure mechanical and electrical compatibility.
