845-030-555-808

Edgeboard Connectors Overview

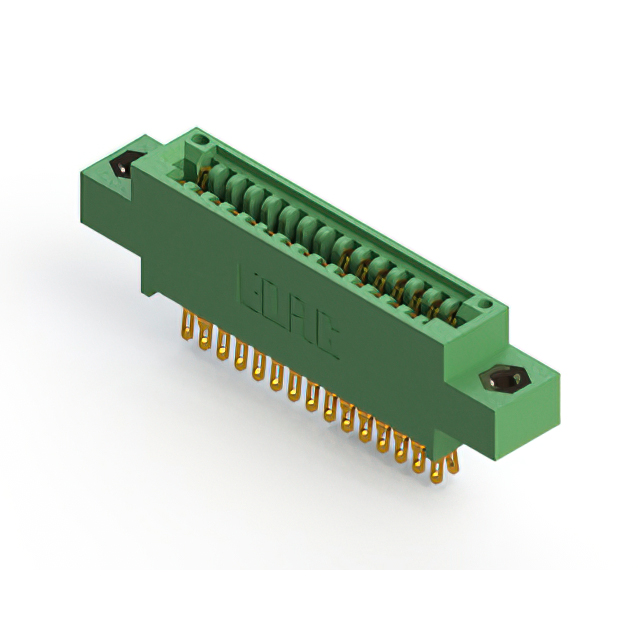

The EDAC Inc. model 845-030-555-808 is a dual-edge female card edge connector designed for high-temperature applications within the 845 series. It features a .100 inch (2.54 mm) contact pitch and a .200 inch (5.08 mm) row spacing, accommodating printed circuit boards with a nominal thickness of .062 inches (1.57 mm). The component provides 30 positions with cantilever contacts finished in gold to ensure reliable signal transmission. Termination is achieved via solder pins, and the insulator body is constructed from high-temperature resistant material suitable for demanding operational environments.

Edgeboard Connectors Feature Summary

• Dual-edge configuration with cantilever contact type for secure board insertion
• High-temperature insulator body construction for thermal stability
• Gold-plated contacts to maintain consistent electrical performance

Edgeboard Connectors Applications

• High-temperature electronic module interconnections
• Ruggedized computing system backplanes
• Industrial control panel card mounting

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact pin count, termination style, and plating specifications. Ensure compatibility with the target PCB thickness and mounting requirements before procurement. Confirm current availability status as distribution channels may vary.

Edgeboard Connectors Selection Notes

Select this connector when a dual-edge interface is required for modules requiring robust mechanical retention. The high-temperature rating makes it suitable for environments exceeding standard commercial limits. Verify that the .100 inch pitch aligns with the design footprint and that the solder pin termination matches the assembly process.

Edgeboard Connectors Part Context

This component belongs to the EDAC 845 High Temperature Series, which specializes in connectors capable of withstanding elevated thermal conditions. The series offers various row counts and termination options tailored for industrial and military-grade applications where reliability under stress is critical.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC cross-reference guide for verified substitute part numbers. Ensure any replacement maintains the same dual-edge configuration, contact pitch, and high-temperature insulation properties.
