Edgeboard Connectors Overview

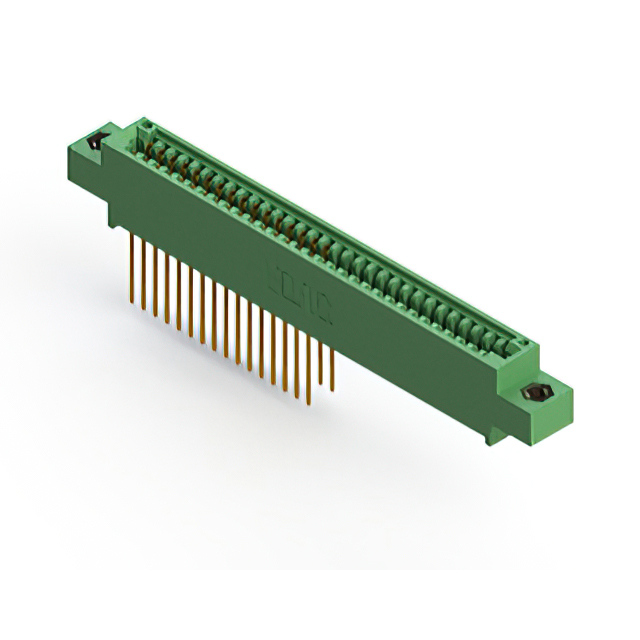

The EDAC Inc. 845-032-540-807 is a high-temperature card edge connector from the 845 series, designed for reliable signal transmission in demanding environments. It features a dual-edge configuration with 32 positions and a 0.100-inch (2.54mm) pitch. The connector utilizes gold-plated copper alloy contacts to ensure low contact resistance and durability. Constructed with a Diallyl Phthalate (DAP) housing, it supports panel mounting and operates within a temperature range of -40°C to +125°C. This component is suitable for applications requiring robust connectivity under thermal stress.

Edgeboard Connectors Feature Summary

• Dual-edge design accommodates standard card edge thicknesses for secure mechanical engagement.
• Gold-plated contacts provide corrosion resistance and stable electrical performance over time.
• High-temperature rated construction ensures functionality in extreme thermal conditions.

Edgeboard Connectors Applications

• Industrial control systems requiring high reliability
• Telecommunications equipment operating in varied climates
• Automotive electronics subject to thermal fluctuations

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm exact pin count, plating thickness, and termination style before procurement. Ensure compatibility with target PCB panel thickness specifications. Confirm that the selected variant matches the required environmental rating for the intended application environment to avoid functional failures.

Edgeboard Connectors Selection Notes

Select this connector when a dual-edge interface with 32 positions is required for panel-mounted assemblies. Consider the 0.100-inch pitch for standard board layouts. Evaluate the high-temperature capability against operational thermal profiles. Ensure the DAP housing material meets chemical resistance requirements for the deployment environment.

Edgeboard Connectors Part Context

This component belongs to the EDAC 845 High Temperature Series, which specializes in connectors for harsh environments. The series offers various position counts and configurations tailored for rugged industrial and aerospace applications. The 845-032-540-807 specifically addresses needs for moderate density connections with enhanced thermal stability compared to standard commercial-grade alternatives.

Edgeboard Connectors Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify cross-reference data through official manufacturer channels or authorized distributors to identify compatible alternatives if this specific part number becomes unavailable.
