845-036-544-204

Edgeboard Connectors Overview

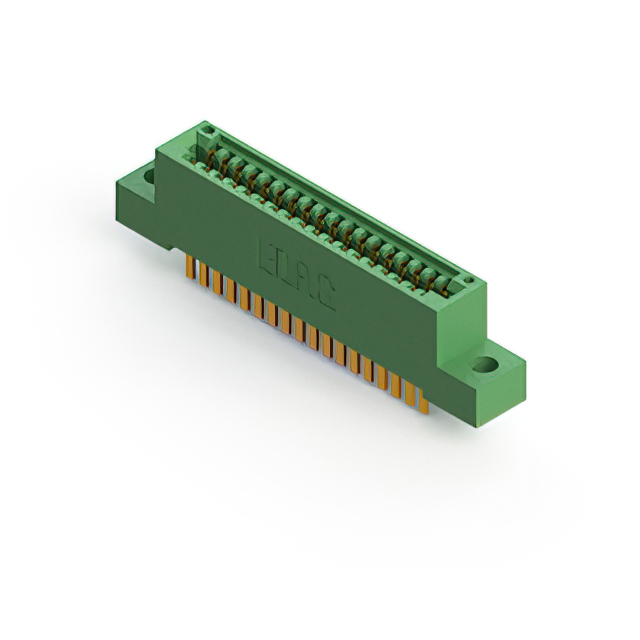

The EDAC Inc. 845-036-544-204 is a standard card edge connector from the 845 High Temp series, designed for panel mounting applications. It features a dual-edge configuration with 36 positions arranged in two rows and a contact pitch of 2.54 mm (0.100 inch). The connector utilizes gold-plated copper alloy contacts to ensure reliable signal transmission and supports a current rating of 3 A. Constructed with Diallyl Phthalate (DAP) housing, it accommodates PCB thicknesses of 1.57 mm and operates within a temperature range of -40 C to +125 C.

Edgeboard Connectors Feature Summary

• Dual-edge design facilitates secure connection to double-sided circuit boards.
• Gold-plated contacts provide corrosion resistance and stable electrical performance.
• High-temperature rated construction ensures reliability in demanding environments.

Edgeboard Connectors Applications

• Industrial control systems requiring high-temperature stability
• Telecommunications equipment interfaces
• Military and aerospace electronic assemblies

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against the manufacturer datasheet to confirm exact pin count, plating thickness, and termination style. Ensure compatibility with the target PCB thickness and panel mounting requirements before procurement. Confirm RoHS compliance status through official documentation.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge card edge connector with a 2.54 mm pitch is required for panel-mounted installations. Consider the 3 A current rating and high-temperature operational limits for suitability in industrial or harsh environment applications. Verify that the 36-position layout matches the system interface requirements.

Edgeboard Connectors Part Context

This part belongs to the EDAC 845 High Temp series, which specializes in robust connectors for extreme conditions. The series offers various position counts and configurations, maintaining consistent material standards such as DAP housing and gold contacts across different models within the family.

Edgeboard Connectors Replacement Considerations

Consult the EDAC official cross-reference list for verified substitutes. Ensure replacement parts match the 2.54 mm pitch, 36-position count, and dual-edge termination style to maintain mechanical and electrical compatibility.
