845-069-525-612

Edgeboard Connectors Overview

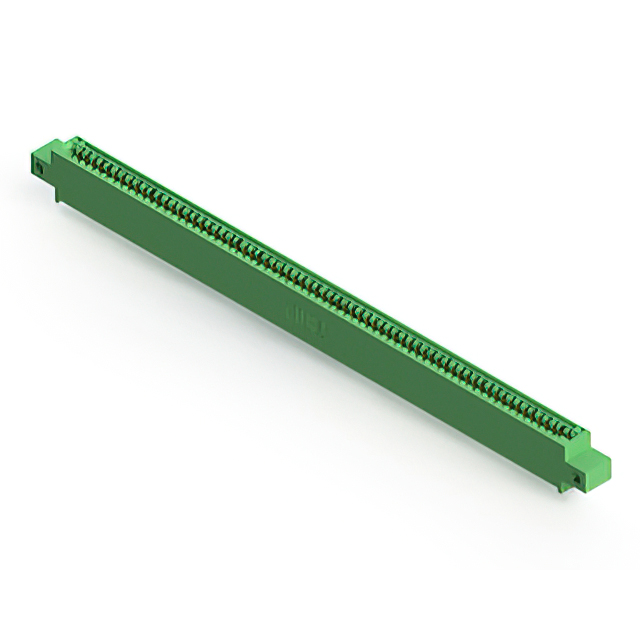

The EDAC Inc. 845-069-525-612 is a standard card edge connector from the 845 high-temperature series, designed for single-edge applications. It features 69 positions with a 0.100 inch (2.54 mm) pitch and utilizes gold-plated contacts on a copper alloy substrate. The housing is constructed from green Diallyl Phthalate (DAP), providing thermal stability within an operating temperature range of -40°C to +125°C. This vertical panel-mount component supports board thicknesses between 0.054 and 0.070 inches.

Edgeboard Connectors Feature Summary

• High-temperature rated construction suitable for demanding environments
• Gold-plated contact surfaces ensure reliable signal transmission
• Vertical panel mount design with single-row configuration

Edgeboard Connectors Applications

• Industrial control systems requiring high thermal stability
• Telecommunications equipment interfaces
• Automotive electronics modules
• Medical device circuit boards

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the official EDAC datasheet to confirm pin count and termination style. Ensure compatibility with target PCB thickness specifications before procurement. Confirm RoHS compliance status through current manufacturer documentation as product statuses may change over time.

Edgeboard Connectors Selection Notes

Select this component when a single-edge connector with 69 positions is required for vertical panel mounting. Consider the 0.100-inch pitch constraint and verify that the application environment remains within the specified -40°C to +125°C operational limits. Evaluate the need for gold plating versus alternative finishes based on corrosion resistance requirements.

Edgeboard Connectors Part Context

This part belongs to the EDAC 845 series, which specializes in high-temperature card edge connectors. The series is characterized by its use of DAP insulation material and robust mechanical design for harsh conditions. It serves as a specialized interconnect solution within the broader category of standard card edge connectors offered by the manufacturer.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC 845 Series Ordering Guide for direct substitutes. Verify equivalent position counts and pitch dimensions when evaluating cross-brand alternatives. Ensure mechanical fit and electrical ratings match the original specification.
