845-094-524-212

Edgeboard Connectors Overview

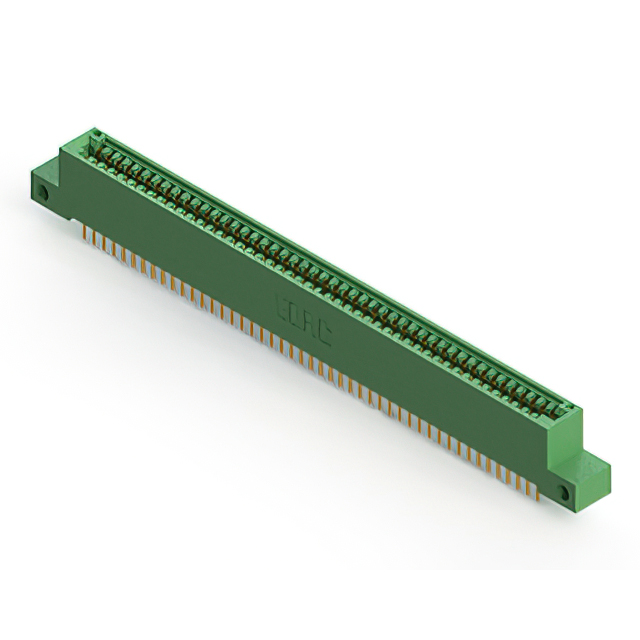

The EDAC Inc. 845-094-524-212 is a standard card edge connector from the 845 high-temperature series, designed for vertical panel mounting. It features a single row of 94 positions with a 2.54 mm (0.100 inch) pitch. The contacts are gold-plated copper alloy, and the termination type is solder pin. The housing is constructed from diallyl phthalate (DAP), providing an insulation resistance of 5 GOhms. It supports a PCB thickness of 1.57 mm and operates within a temperature range of -40°C to +125°C, with a current rating of 3 A.

Edgeboard Connectors Feature Summary

• High-temperature DAP insulator construction for thermal stability
• Gold-plated copper alloy contacts ensuring reliable signal transmission
• Vertical panel mount design with solder pin termination

Edgeboard Connectors Applications

• Industrial control systems requiring high-temperature reliability
• Communication equipment interfaces
• Automotive electronics modules
• Medical device internal connections

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against the manufacturer's official datasheet to confirm exact plating thickness and material specifications. Ensure compatibility with the target PCB slot dimensions and verify that the solder pin termination matches the assembly process requirements. Cross-reference the part number with the latest EDAC documentation to confirm current production status and availability constraints.

Edgeboard Connectors Selection Notes

Select this component when a single-row, high-density connection is required in environments exceeding standard temperature limits. The 94-position count suits applications needing extensive signal or power routing in a compact footprint. Verify that the 1.57 mm board thickness aligns with the system's mechanical stack-up and that the vertical orientation fits the enclosure constraints.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 845 series, which specializes in high-temperature card edge solutions. The series utilizes DAP materials for superior thermal performance compared to standard plastics. The 845-094-524-212 variant specifically addresses needs for robust, vertically mounted interconnects in demanding industrial and aerospace-grade applications where thermal cycling is frequent.

Edgeboard Connectors Replacement Considerations

Consult the EDAC official cross-reference list for direct substitutes. Generic equivalents may not match the DAP material properties or the specific 94-position geometry. Verify that any replacement maintains the same 2.54 mm pitch and vertical mounting style to ensure mechanical fit.
