857-074-420-212

Edgeboard Connectors Overview

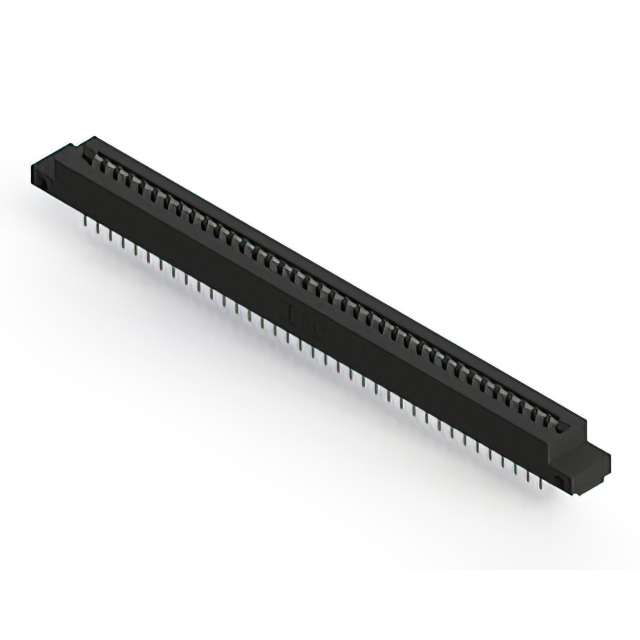

The EDAC Inc. 857-074-420-212 is a card edge connector designed for dual-edge board applications. It features 74 positions with a 0.156-inch (3.96mm) contact spacing and 0.200-inch (5.08mm) row spacing. The housing is constructed from black polyphenylene sulfide (PPS), providing thermal stability up to +125°C. Contacts are tin-plated copper alloy, ensuring reliable conductivity. This through-hole mount connector supports PCB thicknesses between 0.054 and 0.070 inches.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration for secure board insertion
• Polyphenylene sulfide housing for high thermal resistance
• Tin-plated contacts for corrosion protection
• Through-hole termination for robust PCB mounting

Edgeboard Connectors Applications

• Industrial control systems requiring high-temperature reliability
• Telecommunications equipment interfaces
• Medical device circuit board connections
• Energy sector electronic assemblies

Edgeboard Connectors Procurement Notes

Verify the specific suffix code against official EDAC documentation to confirm plating type and material specifications. Ensure compatibility with target PCB thickness ranges before procurement. Confirm RoHS3 compliance status via current manufacturer datasheets. Cross-reference lead times with authorized distributors as availability fluctuates. Validate mechanical dimensions against design constraints.

Edgeboard Connectors Selection Notes

Select this component when dual-edge connectivity with 0.156-inch spacing is required. Consider the PPS housing material for environments exceeding standard temperature limits. Evaluate the tin plating option against gold alternatives for cost-sensitive applications. Verify that the 74-position count matches the interface requirements. Ensure through-hole mounting capabilities align with the assembly process.

Edgeboard Connectors Part Context

This part belongs to the EDAC 857 series of card edge connectors. The series offers various position counts and spacing options for diverse electronic interconnect needs. EDAC specializes in high-reliability connectors for industrial and commercial sectors. The 857 series emphasizes durability and consistent performance across demanding operating conditions.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for verified equivalents. Generic cross-references may not match critical dimensional or material specifications. Verify pinout compatibility and electrical ratings before substituting. Ensure alternative parts meet the same thermal and mechanical standards.
