89-01KA-4R

Pressure Sensors Transducers Overview

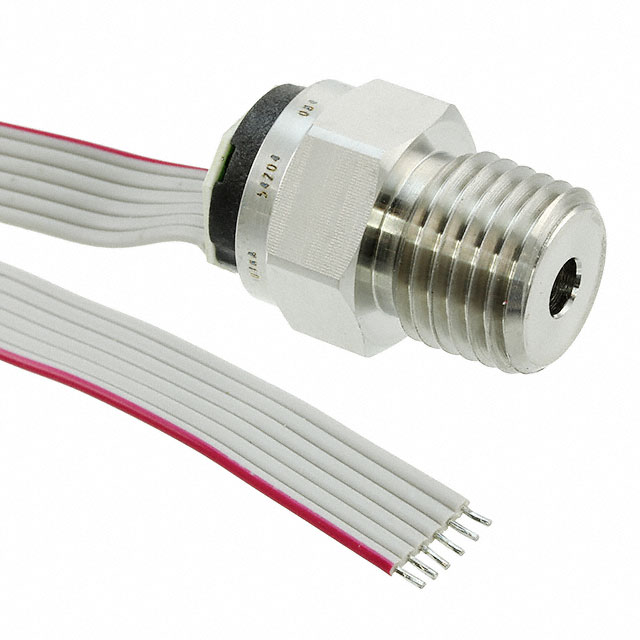

The TE Connectivity Measurement Specialties 89-01KA-4R is a board-mount absolute pressure sensor designed for high-pressure applications. It features a cylindrical package with PC pin termination and operates within a temperature range of -40°C to +125°C. The device supports an operating supply current of 1.5 mA and utilizes a tube packaging format.

Pressure Sensors Transducers Feature Summary

• Cylindrical package design suitable for board mounting
• Absolute pressure sensing capability
• High-temperature operational stability

Pressure Sensors Transducers Applications

• Industrial process control systems
• Hydraulic and pneumatic monitoring
• Medical equipment pressure measurement

Pressure Sensors Transducers Procurement Notes

Verify the specific output voltage range and accuracy class against the official datasheet, as suffixes like '4R' denote distinct electrical characteristics compared to other variants in the 89-01 series. Confirm mechanical fitment requirements for the cylindrical package and PC pin configuration prior to integration into the final assembly design.

Pressure Sensors Transducers Selection Notes

Select this component when absolute pressure measurement is required in compact, board-mounted configurations. Ensure the application environment remains within the specified -40°C to +125°C operating range. Validate that the supply current and output signal levels are compatible with the host system's interface circuitry before finalizing the design.

Pressure Sensors Transducers Part Context

This part belongs to the 89-01 series of board-mount pressure sensors from TE Connectivity Measurement Specialties. The series offers various pressure ranges and output types, with the 89-01KA-4R representing a specific variant optimized for absolute pressure measurement in industrial and medical applications.

Pressure Sensors Transducers Replacement Considerations

Consult the official selection guide for direct substitutes within the 89-01 series. Verify that alternative parts match the cylindrical package dimensions, PC pin termination style, and absolute pressure sensing requirements to ensure mechanical and functional compatibility.
