895-011-559-603

Edgeboard Connectors Overview

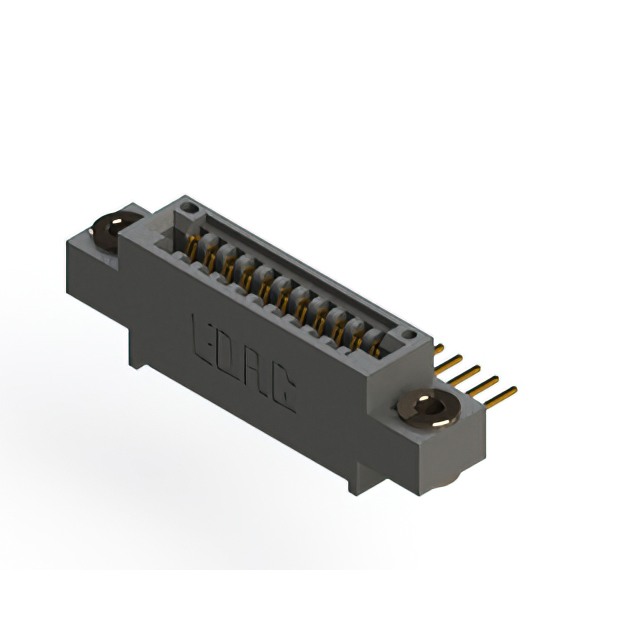

The EDAC Inc. 895-011-559-603 is a standard card edge connector designed for single-row applications. It features 11 female positions with a 0.100-inch (2.54mm) pitch. The connector utilizes gold-plated copper alloy contacts and a black polyphenylene sulfide (PPS) insulator. It supports panel mount installation with right-angle orientation and solder pin termination. The component operates within a temperature range of -40°C to +125°C and is rated for 3A current.

Edgeboard Connectors Feature Summary

• Single-row female contact configuration for non-specified card edge interfaces
• Gold-plated copper alloy contacts ensure reliable signal transmission
• High-temperature resistant PPS insulator material for thermal stability
• Right-angle panel mount design with solder pin termination

Edgeboard Connectors Applications

• Industrial control systems requiring high-temperature connectivity
• Automotive electronic modules
• Communication equipment backplanes
• Power supply interface connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official 895 Series Ordering Guide to confirm exact mechanical dimensions, plating thickness, and mounting options. Ensure compatibility with target PCB stack-up and mating card thickness specifications before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this model when a single-row, right-angle connection is required for boards up to 1.57mm thick. The 11-position count suits moderate I/O density needs. Verify that the 3A current rating and -40°C to +125°C operating range meet the environmental requirements of the target application.

Edgeboard Connectors Part Context

This component belongs to the EDAC 895 series of standard card edge connectors. The series offers various row counts, mounting styles, and termination options. The 895-011 variant specifically addresses single-row needs with a 11-contact layout, distinguishing it from dual-row or higher-count counterparts in the same family.

Edgeboard Connectors Replacement Considerations

Cross-reference part numbers within the EDAC 895 series for alternative contact counts or mounting styles. Verify mechanical footprint and electrical ratings match before substituting with other manufacturers' equivalents.
