895-126-523-804

Edgeboard Connectors Overview

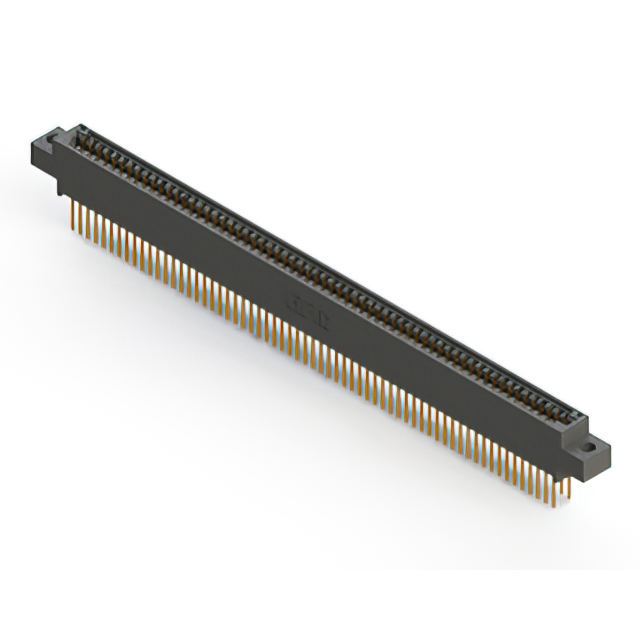

The EDAC Inc. model 895-126-523-804 is a standard card edge connector receptacle featuring 126 positions with a 0.100 inch (2.54 mm) pitch. Designed for dual-edge gold contacts, this component utilizes a polyphenylene sulfide (PPS) insulator and copper alloy terminals. It supports a panel mount installation style at a vertical angle and accommodates a board thickness of 1.57 mm. The connector operates within a temperature range of -40 C to +125 C and provides an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Dual-edge contact configuration with gold plating for reliable signal transmission
• Polyphenylene sulfide insulator material ensuring UL 94V-0 flammability rating
• Vertical panel mount design compatible with standard PCB thicknesses

Edgeboard Connectors Applications

• Medical interconnect solutions requiring durable connections
• Agricultural technology equipment operating in harsh environments
• Industrial control systems utilizing standard card edge interfaces

Edgeboard Connectors Procurement Notes

Verify availability through authorized distributors as supply status may vary. Confirm that the specific ordering suffix matches the required pin count and termination style. Ensure compatibility with existing panel mounting hardware and PCB design specifications before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a high-density 126-position interface is required. The 2.54 mm pitch suits standard board layouts. Verify that the vertical orientation and panel mount style align with the mechanical constraints of the target enclosure design.

Edgeboard Connectors Part Context

This part belongs to the EDAC 895 series of standard card edge connectors. The series is characterized by robust construction using PPS insulators and gold-plated copper alloy contacts. It serves as a foundational interconnect solution for various electronic assemblies requiring secure board-to-board or board-to-panel connections.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series require matching position counts and pitch dimensions. Verify that alternative part numbers maintain identical mounting styles and contact configurations to ensure mechanical and electrical compatibility.
