896-007-559-602

Edgeboard Connectors Overview

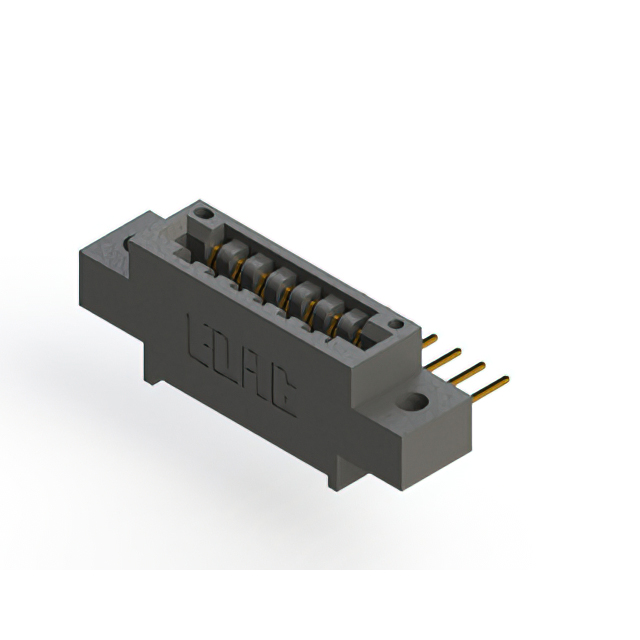

The EDAC Inc. 896-007-559-602 is a standard high-temperature card edge connector receptacle designed for reliable signal transmission in demanding environments. This component features seven positions with a 3.175 mm (0.125 inch) pitch, accommodating single-edge female contacts. It utilizes gold-plated copper alloy terminals to ensure low contact resistance and corrosion resistance. The housing is constructed from black polyphenylene sulfide (PPS), providing thermal stability and mechanical strength. Designed for panel mount installation at a right angle, it supports PCB thicknesses of 1.57 mm. The connector operates within a temperature range of -40°C to +125°C and maintains an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• High-temperature capability utilizing PPS insulator material for thermal stability
• Gold-plated female contacts ensuring durable signal integrity
• Right-angle panel mount design for space-efficient integration

Edgeboard Connectors Applications

• Medical interconnect solutions requiring high reliability
• Agricultural technology equipment operating in harsh environments
• Industrial control systems needing stable card edge connections

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact pin count, plating type, and orientation. Ensure compatibility with target PCB thickness of 1.57 mm and verify that the right-angle panel mount style aligns with chassis design constraints. Confirm RoHS compliance status through current manufacturer datasheets before finalizing procurement specifications.

Edgeboard Connectors Selection Notes

Select this component when a compact, high-temperature card edge solution is required for vertical or angled panel installations. The 7-position configuration suits applications with moderate I/O density needs. Consider the 3.175 mm pitch for standard board layouts and verify that the female contact type matches the mating card edge profile. Evaluate the PPS housing properties against environmental exposure requirements such as chemical resistance and heat dissipation.

Edgeboard Connectors Part Context

This part belongs to the EDAC 896 series of standard card edge connectors, which are engineered for robust performance in industrial and specialized sectors. The series offers various position counts and mounting styles to support diverse electronic assembly needs. As a receptacle, it interfaces with corresponding card edge plugs to establish secure electrical pathways in systems where vibration resistance and thermal endurance are critical operational factors.

Edgeboard Connectors Replacement Considerations

Cross-reference compatible parts by matching the 7-position count, 3.175 mm pitch, and right-angle panel mount configuration. Verify that substitute components offer equivalent gold plating and PPS housing materials to maintain thermal and electrical performance standards in high-temperature applications.
