896-014-522-204

Edgeboard Connectors Overview

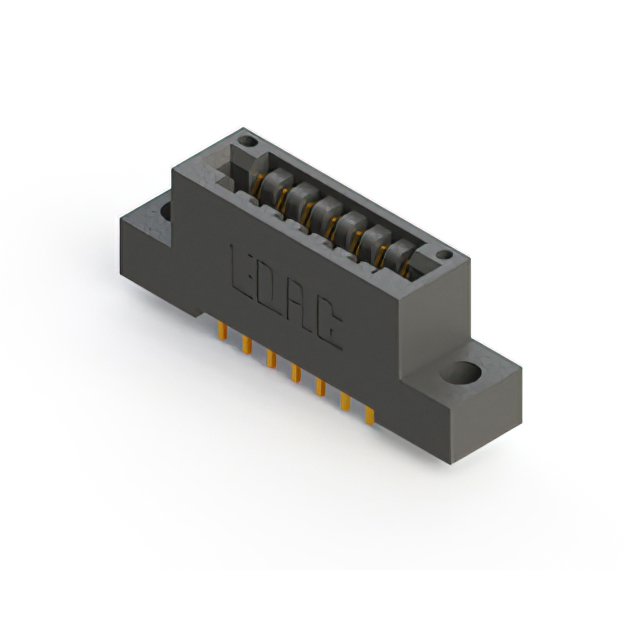

The EDAC Inc. 896-014-522-204 is a standard card edge connector receptacle designed for panel mount applications. It features a dual female configuration with 14 positions arranged in two rows. The connector utilizes a .125 inch (3.175 mm) contact pitch and a .250 inch (6.35 mm) row spacing to accommodate printed circuit boards with a nominal thickness of .062 inch (1.57 mm). This component employs wire wrap termination methods for secure electrical connections.

Edgeboard Connectors Feature Summary

• Dual female card edge receptacle design
• Wire wrap termination style
• High profile insulator body construction

Edgeboard Connectors Applications

• Panel mounted electronic assemblies
• Industrial control systems
• Communication equipment interfaces

Edgeboard Connectors Procurement Notes

Verify the specific manufacturer part number against official EDAC documentation to ensure compatibility with system requirements. Confirm that the wire wrap termination method aligns with available assembly tools and processes. Check for any recent product change notifications or obsolescence notices from the manufacturer before finalizing procurement decisions.

Edgeboard Connectors Selection Notes

Select this connector when a dual-row card edge interface with a .125 inch pitch is required. Ensure the target printed circuit board thickness matches the specified .062 inch nominal dimension. Verify that the panel mounting style and vertical orientation fit the mechanical constraints of the enclosure design.

Edgeboard Connectors Part Context

This component belongs to the EDAC 896 series of high-temperature card edge connectors. The series is characterized by robust construction suitable for demanding environments. The specific model provides a reliable interconnection solution for applications requiring durable panel-mounted connections with standardized spacing dimensions.

Edgeboard Connectors Replacement Considerations

Compatible substitutes within the same series include models such as 896-014-522-608 and 896-014-522-802, which share similar form factors and pin counts. Verify insulation resistance and material specifications when considering alternative part numbers.
