9220-28-RC

Fixed Inductors Overview

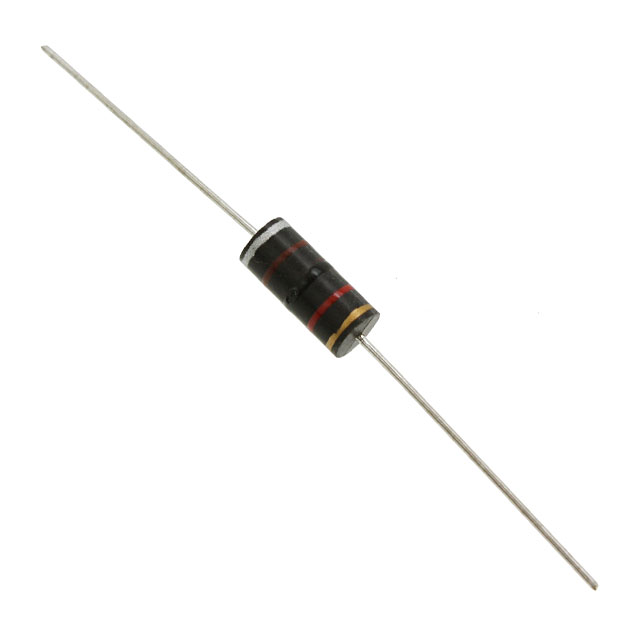

The Bourns 9220-28-RC is a molded axial wirewound RF choke inductor featuring a ferrite core. It provides an inductance of 1 mH with a tolerance of ±5%. The component has a maximum DC resistance of 16.5 Ohms and a rated current of 78 mA. It exhibits a minimum quality factor of 60 at the nominal inductance frequency of 790 KHz. The self-resonant frequency is specified at 2.8 MHz, ensuring stable performance in radio frequency applications.

Fixed Inductors Feature Summary

• Molded axial construction for secure lead retention
• Ferrite core design optimized for radio frequency choke operations
• Wirewound technology providing high Q-factor stability

Fixed Inductors Applications

• Radio frequency signal filtering
• RF choke circuits
• High-frequency noise suppression

Fixed Inductors Procurement Notes

Verify that the suffix RC confirms RoHS compliance and halogen-free status as per manufacturer specifications. Confirm the axial package dimensions match the target PCB layout requirements. Ensure the 78 mA current rating meets the operational load conditions to prevent saturation or thermal issues during procurement validation.

Fixed Inductors Selection Notes

Select this component when a fixed 1 mH inductance is required for RF applications with limited space due to its axial form factor. Consider the 78 mA current limit and 16.5 Ohm DC resistance for circuit impedance matching. The 2.8 MHz self-resonant frequency defines the upper operational limit for effective choking behavior in the intended frequency range.

Fixed Inductors Part Context

This part belongs to the Bourns 9220 series of molded axial inductors. These components are designed for general-purpose electronic circuits requiring reliable RF filtering. The series utilizes wirewound techniques on ferrite cores to achieve consistent electrical characteristics across production batches.

Fixed Inductors Replacement Considerations

Cross-reference with other 1 mH axial wirewound inductors from different manufacturers if supply constraints exist. Verify that substitute parts maintain equivalent current ratings, DC resistance, and self-resonant frequencies to ensure circuit compatibility without redesign.

Fixed Inductors FAQ

What is the self-resonant frequency of the 9220-28-RC?

The self-resonant frequency is 2.8 MHz.

Does the 9220-28-RC have a shielded core?

No, it is an unshielded drum core inductor.
