929647-02-03-EU

Headers, Male Pins Overview

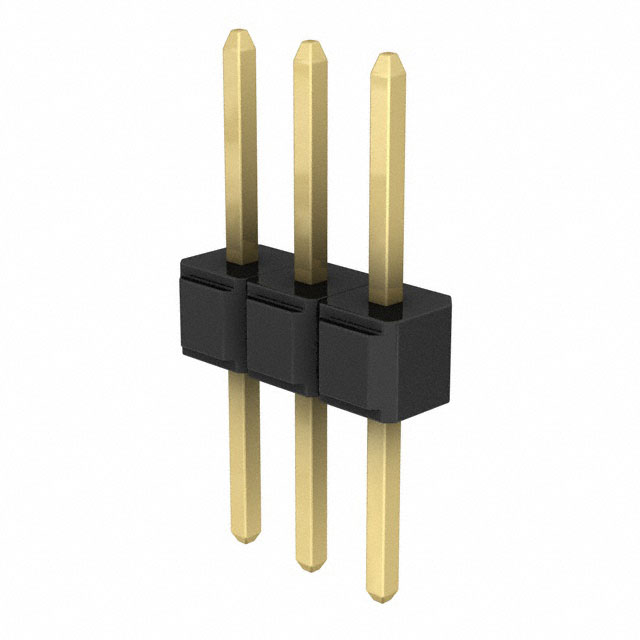

The 3M 929647-02-03-EU is a single-row pin header from the 929 series, designed for through-hole PCB mounting. It features three male pins with a 2.54 mm (0.1 in) pitch. The connector utilizes gold-plated copper alloy contacts and a black PCT insulator rated UL94 V-0. Electrical ratings include 2.5 A current and 1.5 kV voltage. It supports wave or infrared soldering processes.

Headers, Male Pins Feature Summary

• High-temperature PCT insulation suitable for wave and infrared soldering
• Gold-plated copper alloy contacts for reliable conductivity
• Single-row design with breakaway capability for flexible sizing

Headers, Male Pins Applications

• Board-to-board connections
• Wire-to-board interconnections
• Industrial automation systems
• Data center hardware assemblies

Headers, Male Pins Procurement Notes

Verify component authenticity against official 3M documentation due to discontinued status. Confirm RoHS compliance and MSL level 1 classification. Check for authorized distributors offering valid stock as standard supply chains may be limited. Ensure replacement parts match electrical and mechanical specifications exactly.

Headers, Male Pins Selection Notes

Select this part for applications requiring high-temperature resistance during soldering. The PCT material ensures stability under thermal stress. Gold plating provides corrosion resistance. Verify pin count and pitch compatibility with mating connectors before integration into the final assembly design.

Headers, Male Pins Part Context

Part of the 3M 929 series pin headers. This series offers versatile single and double-row options. Components support various plating finishes including matte tin and tin-lead. Designed for robust performance in demanding electronic environments with strict thermal requirements.

Headers, Male Pins Replacement Considerations

Official substitutes include 0022284022 by Molex. Verify equivalent pin count, pitch, and termination style when selecting alternatives.
