98424-F52-40ULF

Headers, Male Pins Overview

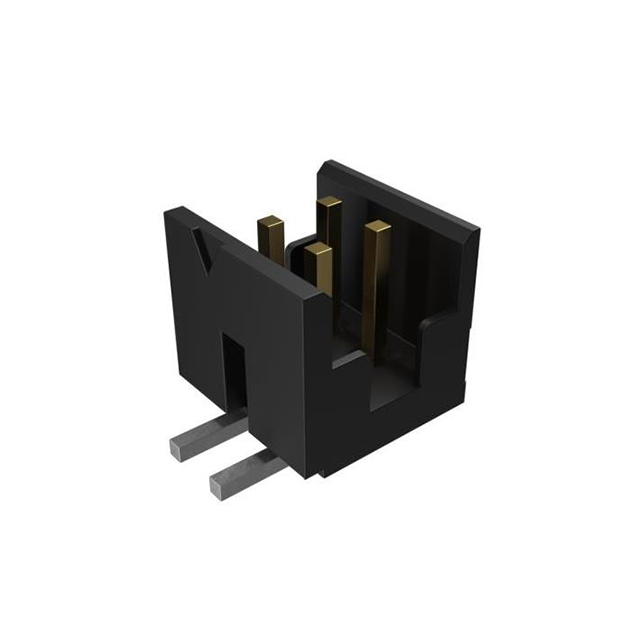

The Amphenol ICC (FCI) 98424-F52-40ULF is a surface-mount header connector from the Minitek 2.00mm series. It features 40 positions arranged in a dual-row configuration with a 2.00mm pitch. The connector utilizes male pins with gold plating on the mating interface and tin plating on the termination column. Rated for 2A at 200V AC/DC, it employs a cream-colored thermoplastic insulator with UL94 V-0 flammability rating. The design includes a shrouded structure with a four-wall shield and locking posts to ensure secure board-to-board or cable connections.

Headers, Male Pins Feature Summary

• Dual-row surface-mount header with shrouded housing and integrated locking mechanism
• Gold-plated male contacts ensure reliable signal transmission
• Thermoplastic insulation provides UL94 V-0 fire resistance
• Square contact shape supports precise alignment during assembly

Headers, Male Pins Applications

• Board-to-board interconnections
• Cable-to-board assemblies
• General electronic equipment internal wiring

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'ULF' confirms lead-free and RoHS compliance status directly with the manufacturer's current documentation. Confirm that the surface-mount package dimensions match the target PCB footprint requirements. Ensure the selected variant matches the required pin count and row configuration for the intended circuit design.

Headers, Male Pins Selection Notes

Select this component when a 2.00mm pitch surface-mount header is required for high-density applications. The dual-row layout accommodates 40 signals within a compact area. Consider the shrouded design for improved mechanical stability and protection against misalignment during mating processes compared to unshrouded alternatives.

Headers, Male Pins Part Context

This part belongs to the Minitek 2.00mm family of connectors designed for space-constrained environments. The series offers various position counts and mounting styles to support diverse electronic packaging needs. The 98424 base number indicates the core connector system architecture shared across multiple variants.

Headers, Male Pins Replacement Considerations

Direct substitutes include other 98424-series headers with identical 40-position dual-row SMT configurations. Verify compatibility by checking pitch, row count, and shroud type. Alternative brands may require re-evaluation of mechanical fit and electrical ratings.
