A16H1608ALLP

Overview

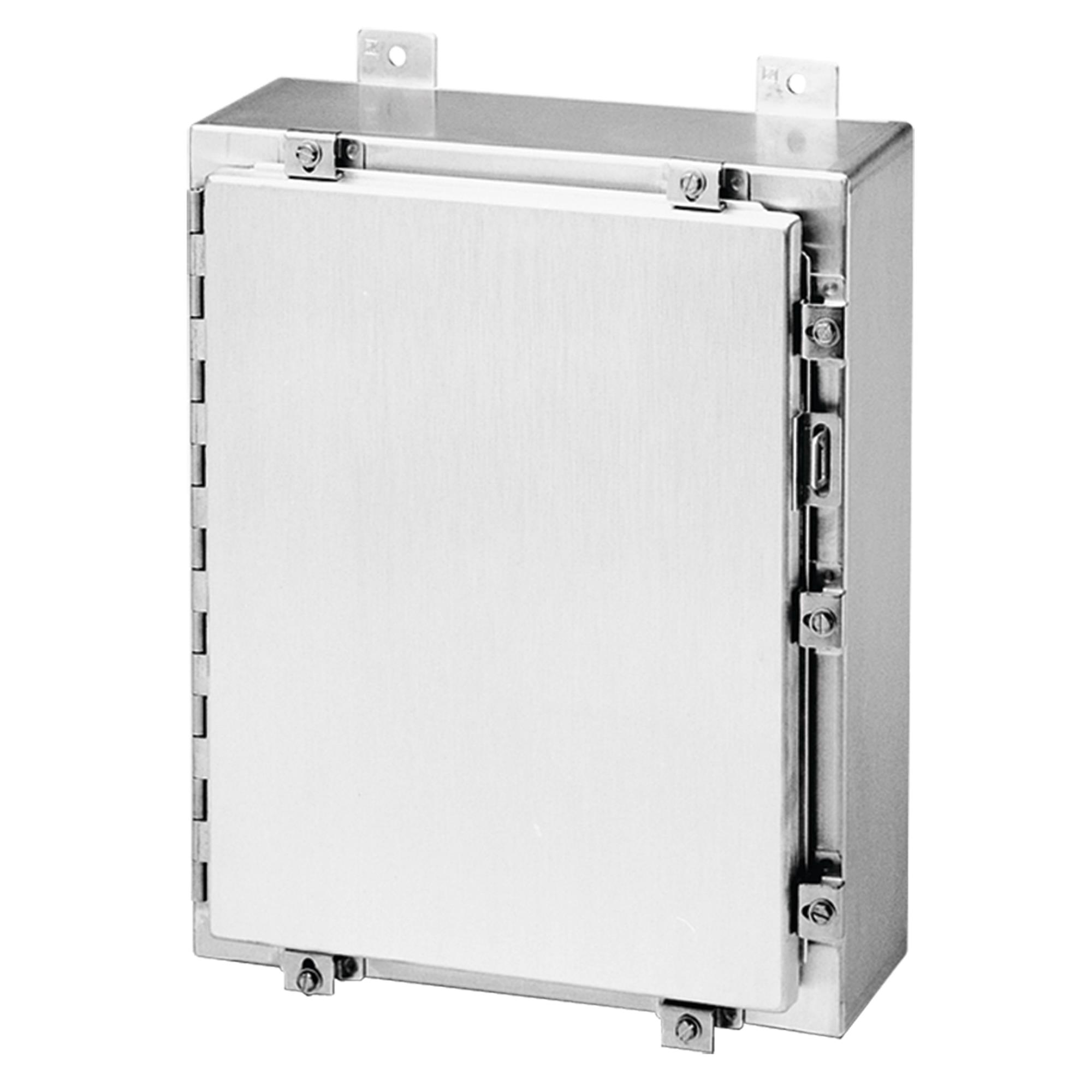

The A16H1608ALLP is a Type 4X aluminum enclosure manufactured by Hoffman Enclosures, Inc. It features dimensions of 16 inches in height, 16 inches in width, and 8 inches in depth (406.4 mm x 406.4 mm x 203.2 mm). The unit includes a continuous hinge cover with clamps and stainless steel screws. The exterior finish is brushed aluminum.

Feature Summary

• Continuous welded seams ground smooth for durability
• Rolled lip design around door and enclosure opening
• Type 4X rating for corrosion resistance

Applications

• Petrochemical processing plants
• Highly corrosive indoor environments
• Highly corrosive outdoor environments

Procurement Notes

Verify the specific model number A16H1608ALLP against official nVent Hoffman documentation to confirm Type 4X compliance and material specifications. Ensure the continuous hinge and clamp configuration matches the required installation constraints. Cross-reference dimensional data with physical mounting requirements before procurement.

Selection Notes

Select this model when a lightweight, corrosion-resistant enclosure is required for harsh industrial settings. The Type 4X rating indicates suitability for washdown and corrosive atmospheres. The continuous hinge provides robust support for frequent access compared to standard hinges.

Part Context

This component belongs to the Hoffman LP series of hinged enclosures. It is designed as a protective housing for electrical components and controls. The aluminum construction offers a balance of strength and weight reduction suitable for various industrial mounting applications.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
