AA2810ASYSK/J3

Overview

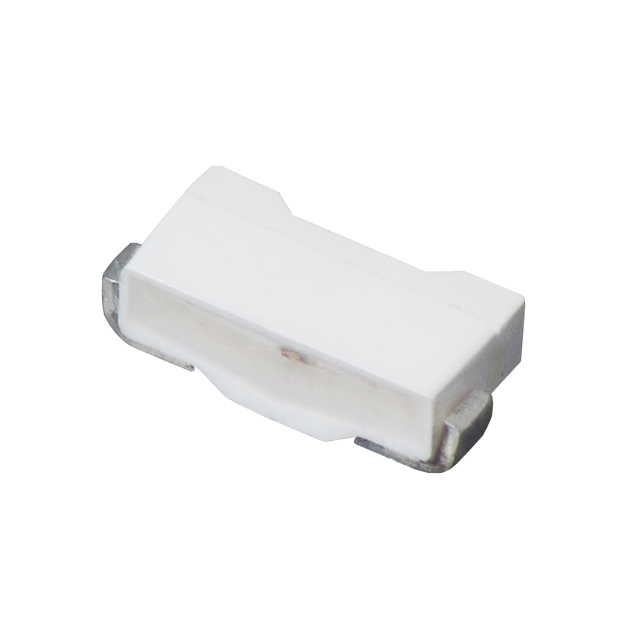

The AA2810ASYSK/J3 is a single-color yellow surface-mount LED manufactured by Kingbright. It emits light at a peak wavelength of 590nm with a typical forward voltage of 2V at a test current of 20mA. The component features a clear lens and offers a luminous intensity of 550mcd with an observation angle of 110 degrees. It utilizes a 2-SMD, J-lead right-angle package measuring 2.50mm in length, 1.20mm in width, and 0.90mm in maximum height.

Feature Summary

• Right-angle surface mount configuration for space-efficient PCB layouts
• High luminous intensity output for clear visual indication
• Wide viewing angle to ensure visibility from multiple perspectives

Applications

• Panel status indicators
• Power supply status lights
• Electronic device signaling

Procurement Notes

Verify the specific suffix J3 confirms the right-angle J-lead package style required for the target footprint. Confirm RoHS3 compliance and moisture sensitivity level 3 handling requirements during storage and assembly processes to prevent damage.

Selection Notes

Select this component when a low-profile, right-angle yellow indicator is needed. Ensure the circuit design accommodates the 2V forward voltage drop. Verify that the 550mcd intensity meets visibility requirements for the intended application environment.

Part Context

This part belongs to the AA2810 series of single-color LEDs from Kingbright. The series provides various color options and package styles, including standard and right-angle configurations, designed for general-purpose indication in consumer and industrial electronics.

Replacement Considerations

Consult official Kingbright documentation for direct substitutes within the AA2810 family or alternative manufacturers offering identical 2-SMD J-lead yellow LED specifications.
