AA3528SGS

LED Indication - Discrete Overview

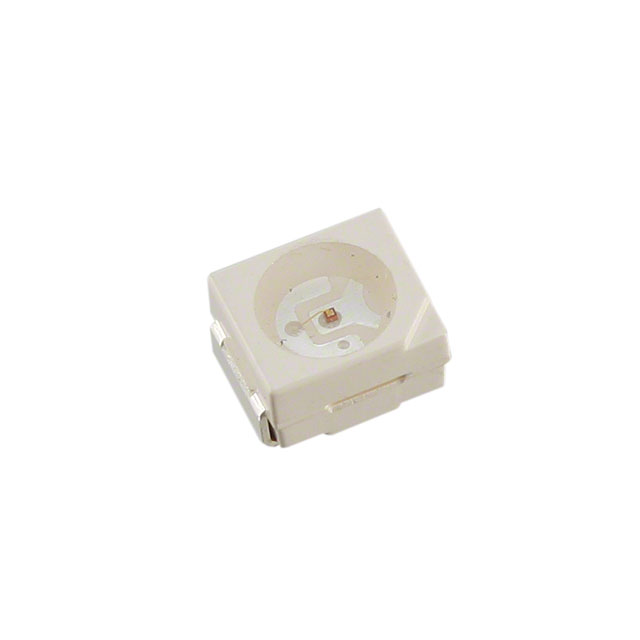

The AA3528SGS is a single-color surface-mount LED manufactured by Kingbright, emitting green light with a peak wavelength of 568 nm. It utilizes a water-clear lens housed in a 1411 (3528 metric) package measuring 3.5 mm in length, 2.8 mm in width, and 1.9 mm in height. The component operates with a forward current of 20 mA and a forward voltage of 2.2 V, dissipating up to 62.5 mW. It offers a viewing angle of 120 degrees and functions within a temperature range of -40°C to +85°C.

LED Indication - Discrete Feature Summary

• Emits green light at a 568 nm peak wavelength
• Features a water-clear round flat lens for optical clarity
• Designed for surface mount technology (SMD/SMT) installation

LED Indication - Discrete Applications

• Electronic device status indicators
• Panel illumination
• General purpose visual signaling

LED Indication - Discrete Procurement Notes

Verify the manufacturer part number AA3528SGS against official Kingbright documentation to confirm specifications. Ensure compatibility with surface mount assembly processes. Check for moisture sensitivity levels and storage requirements prior to soldering. Confirm RoHS compliance status through the manufacturer's datasheet or certification documents.

LED Indication - Discrete Selection Notes

Select this component when a standard green indicator is required for compact circuit designs. The 3528 form factor allows for dense PCB layouts. Consider the 120-degree viewing angle for broad visibility applications. Verify that the 20 mA forward current rating aligns with the driving circuit capabilities and power budget constraints.

LED Indication - Discrete Part Context

This component belongs to the Kingbright single-color LED product line, specifically utilizing the common 3528 SMD package style. It is distinct from multi-color RGB variants like the AAA3528SEEZGGVBDS and infrared emitters such as the AA3528SF4S-R. The AA3528SGS serves as a dedicated green light source for discrete indication tasks.

LED Indication - Discrete Replacement Considerations

The alias KA-3528SGS refers to the same component. No other specific substitute part numbers are documented in the provided data.
