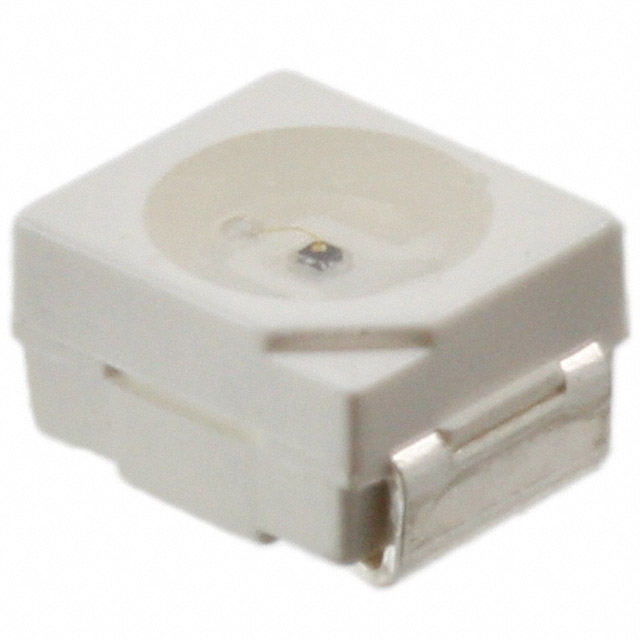

AA3528SRS

$0.38

Description：LED RED CLEAR SMD
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:e1c3175ac26d Category: LED Indication - Discrete Brand: Kingbright

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AA3528SRS is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Kingbright. Its product description is LED RED CLEAR SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for AA3528SRS

Description：LED RED CLEAR SMD
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Red
Configuration：Standard
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：150mcd
Lens Style：Round with Flat Top
Lens Size：2.40mm Dia
Voltage - Forward (Vf) (Typ)：1.85V
Current - Test：20mA
Viewing Angle：120°
Mounting Type：Surface Mount
Wavelength - Dominant：640nm
Wavelength - Peak：660nm
Features：-
Package / Case：2-PLCC
Supplier Device Package：SMD
Size / Dimension：3.20mm L x 2.80mm W
Height (Max)：2.10mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for AA3528SRS

AA3528SRS

LED Indication - Discrete Overview

The AA3528SRS is a single-color surface-mount LED manufactured by Kingbright, emitting red light with a dominant wavelength of 640 nm. It features a water-clear lens and a viewing angle of 120 degrees. The component operates at a forward voltage of 1.85 V and a forward current of 20 mA, with a power rating of 75 mW. It has a luminous intensity of 150 mcd and is housed in a 1411 (3528 metric) package measuring 3.5 mm x 2.8 mm x 1.9 mm.

LED Indication - Discrete Feature Summary

Emits red light with a 120-degree viewing angle for broad visibility
Utilizes a water-clear lens to enhance light transmission
Designed for surface-mount technology (SMD/SMT) installation

LED Indication - Discrete Applications

Electronic device status indication
Panel indicator lights
General-purpose optical signaling

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version and RoHS compliance details directly with Kingbright or authorized distributors before procurement. Confirm that the 1411 package dimensions align with your PCB footprint requirements. Ensure handling procedures account for moisture sensitivity as indicated in standard specifications for this component type.

LED Indication - Discrete Selection Notes

Select the AA3528SRS when a red indicator with a wide 120-degree viewing angle is required. Its 150 mcd intensity suits general indication tasks where moderate brightness is sufficient. The standard 3528 SMD form factor allows for easy integration into compact designs without requiring specialized mounting infrastructure.

LED Indication - Discrete Part Context

This component belongs to Kingbright's single-color LED portfolio, specifically within the yellow and red LED subcategories. It shares the common 1411 (3528 metric) surface-mount package format used across various Kingbright indicator LEDs, ensuring mechanical compatibility with other components in the same series.
