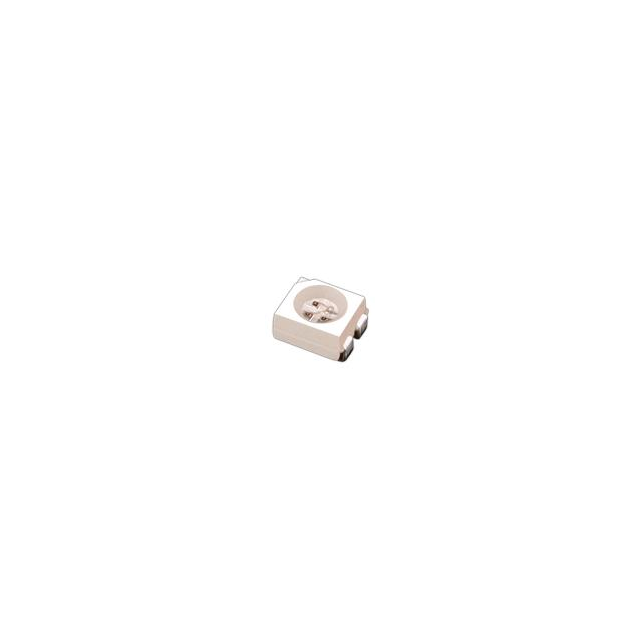

AAA3528ESGS
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：LED GREEN/RED CLEAR 4PLCC SMD
- Series：-
- Mfr：Kingbright
- Package：Bulk
- Color：Green, Red
- Configuration：-
- Lens Color：Colorless
- Lens Transparency：Clear
- Millicandela Rating：30mcd Green, 30mcd Red
- Lens Style：Round with Flat Top
- Lens Size：2.40mm Dia
- Voltage - Forward (Vf) (Typ)：2.2V Green, 2V Red
- Current - Test：20mA Green, 20mA Red
- Viewing Angle：120°
- Mounting Type：Surface Mount
- Wavelength - Dominant：568nm Green, 625nm Red
- Wavelength - Peak：565nm Green, 627nm Red
- Features：-
- Package / Case：4-PLCC
- Supplier Device Package：4-PLCC
- Size / Dimension：3.20mm L x 2.80mm W
- Height (Max)：2.10mm
- Grade：-
- Qualification：-
Download product information
Overview
Kingbright AAA3528ESGS is a dual-chip surface-mount LED in a PLCC-4 package. It integrates Red and Green emitters within a 3.5 x 2.8 mm footprint. The device features a water-clear lens with a 120-degree viewing angle. Electrical characteristics include a maximum forward current of 30mA per chip and a total power dissipation of 75mW. The component operates within a temperature range of -40°C to +85°C and complies with RoHS standards.
Feature Summary
- Dual-chip configuration allowing independent control of red and green light sources
- Water-clear round flat lens design for consistent optical transmission
- Compatible with standard SMD assembly and soldering processes
Applications
- Status indicator lamps for electronic equipment
- Bi-color signaling devices
- Consumer electronics front panels
Procurement Notes
Verify the specific suffix against official Kingbright documentation to confirm exact wavelength and intensity binning. Confirm moisture sensitivity level requirements for storage and handling. Ensure the ordering quantity matches the manufacturer's tape and reel specifications. Check for any recent lifecycle status updates or obsolescence notices directly from the supplier.
Selection Notes
Select this component when a compact bi-color solution is required for space-constrained designs. Consider the 120-degree viewing angle for visibility requirements. Evaluate the thermal management needs based on the 75mW power dissipation limit. Compare alternative wavelengths if specific color rendering is critical for the application.
Part Context
The AAA3528 series represents Kingbright's surface-mount LED offerings in the 3528 metric package size. This specific model belongs to the multi-color LED category, designed for applications requiring two distinct colors in a single housing. The PLCC-4 form factor is widely used in industrial and consumer electronics for reliable surface mounting.
Replacement Considerations
Consult official Kingbright substitution guides for verified equivalents. Generic cross-references may differ in luminous intensity or forward voltage characteristics. Verify pinout compatibility before replacing.
