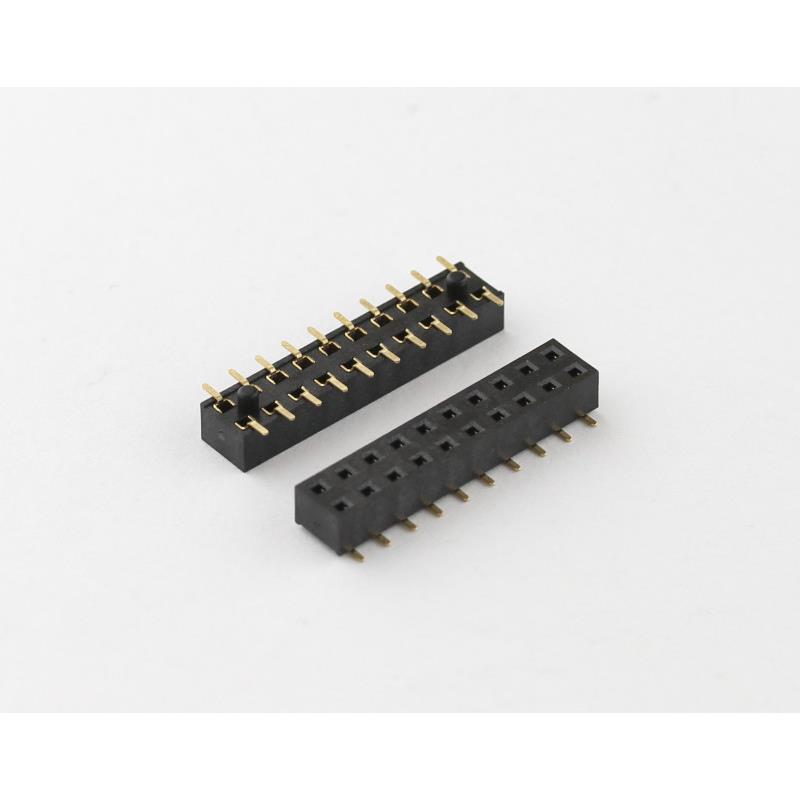

ABL-254-16-SR41

ABL-254-16-SR41 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Assmann WSW Components. Its product description is PIN- & FEMALE HEADER FEMALE SMT. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for ABL-254-16-SR41

• Description：PIN- & FEMALE HEADER FEMALE SMT
• Series：ABL-254
• Mfr：Assmann WSW Components
• Package：Tube
• Connector Type：Receptacle
• Contact Type：Female Socket
• Style：Board to Board
• Number of Positions：16
• Number of Positions Loaded：All
• Pitch - Mating：0.100" (2.54mm)
• Number of Rows：2
• Row Spacing - Mating：0.100" (2.54mm)
• Mounting Type：Surface Mount
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：-
• Insulation Color：Black
• Insulation Height：0.150" (3.81mm)
• Contact Length - Post：-
• Operating Temperature：-55°C ~ 105°C
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：-
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：Board Guide
• Current Rating (Amps)：3A per Contact
• Voltage Rating：-

Headers, Receptacles, Female Sockets datasheet and documents for ABL-254-16-SR41
