ABL-254-26-SR41

Headers, Receptacles, Female Sockets Overview

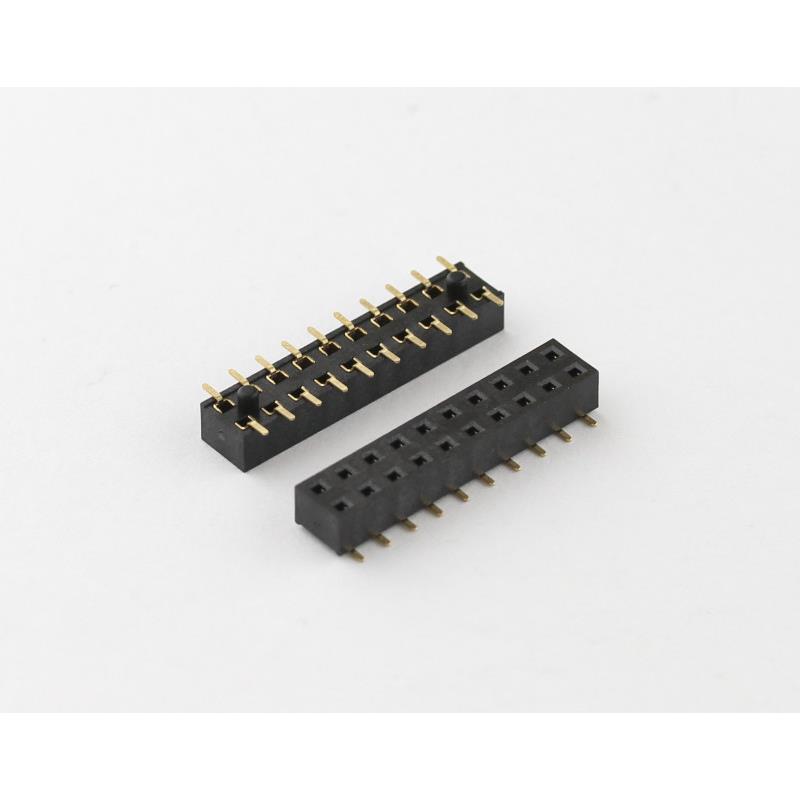

The ABL-254-26-SR41 is a 26-position female header connector from the ASSMANN WSW Components product line. It features a 0.100-inch (2.54 mm) pin spacing and is designed for surface mount technology (SMT) installation. The contacts are gold-plated to ensure reliable signal transmission. This component serves as a standard interconnection solution for printed circuit boards, providing secure mating with corresponding male headers in electronic assemblies.

Headers, Receptacles, Female Sockets Feature Summary

• Surface mount design for automated PCB assembly
• Gold-plated stamped pin contacts for conductivity
• Standard 2.54 mm pitch for broad compatibility

Headers, Receptacles, Female Sockets Applications

• General-purpose electronic circuit board interconnections
• Consumer electronics internal wiring
• Industrial control module interfaces

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix SR41 against the manufacturer's current datasheet to confirm exact contact plating thickness and reel packaging specifications. Ensure the selected variant matches the required surface mount footprint and thermal profile constraints for the intended manufacturing process.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a surface mount female header with 26 positions is required. The 2.54 mm pitch ensures compatibility with standard male counterparts. Verify that the SMT mounting style aligns with the PCB layout and reflow soldering capabilities of the production facility.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the ABL series of header connectors manufactured by ASSMANN WSW Components. The series offers various configurations for different mounting styles and pin counts, catering to diverse electronic design needs within the broader connector market.
