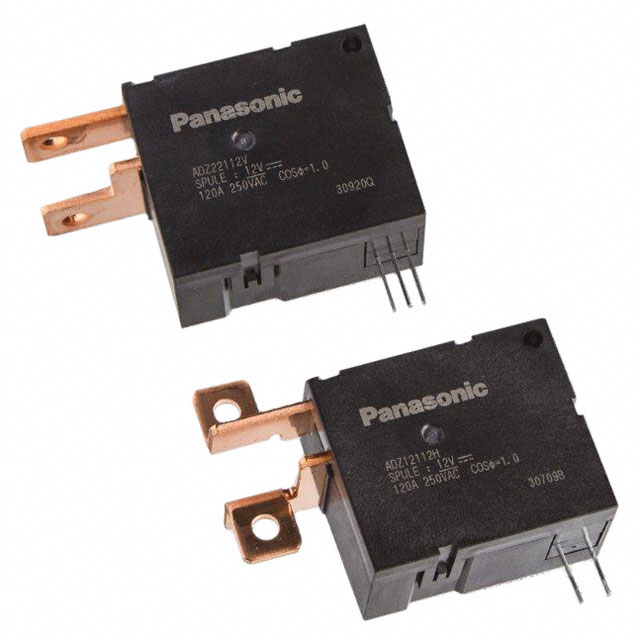

ADZ22112V

ADZ22112V is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists Panasonic Electric Works. Its product description is RELAY GEN PURPOSE SPST 120A 12V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for ADZ22112V

• Description：RELAY GEN PURPOSE SPST 120A 12V
• Series：ADZ
• Mfr：Panasonic Electric Works
• Package：Box
• Mounting Type：Chassis Mount
• Coil Voltage：12VDC
• Contact Form：SPST-NO (1 Form A)
• Contact Rating (Current)：120 A
• Switching Voltage：276VAC - Max
• Load - Max Switching：33120VA
• Coil Current：233.3 mA
• Coil Type：Latching, Dual Coil
• Features：-
• Termination Style：Solder Lug
• Seal Rating：-
• Coil Insulation：-
• Must Operate Voltage：8.4 VDC
• Must Release Voltage：-
• Operating Temperature：-40°C ~ 85°C
• Contact Material：Silver Tin Oxide (AgSnO)
• Approval Agency：VDE
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：20 ms
• Release Time：20 ms

Power Relays, Over 2 Amps datasheet and documents for ADZ22112V
