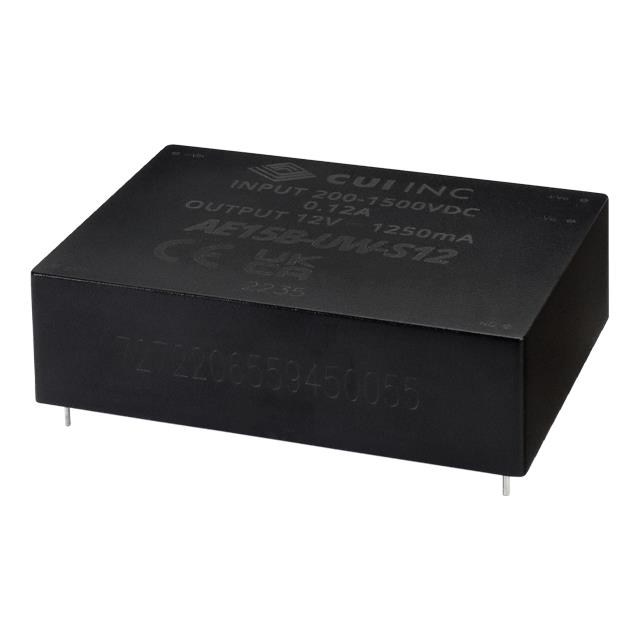

AE15B-UW-S12

AE15B-UW-S12 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists CUI Inc.. Its product description is DC-DC ISOLATED, 15 W, 200~1500 V. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for AE15B-UW-S12

• Description：DC-DC ISOLATED, 15 W, 200~1500 V
• Series：AE15B-UW (15W)
• Mfr：CUI Inc.
• Package：Tray
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：200V
• Voltage - Input (Max)：1500V
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：1.25A
• Power (Watts)：15 W
• Voltage - Isolation：5.6 kV
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 70°C (With Derating)
• Efficiency：71%
• Mounting Type：Through Hole
• Package / Case：5-DIP Module
• Size / Dimension：3.50" L x 2.50" W x 0.98" H (89.0mm x 63.5mm x 25.0mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CE, EN, UKCA
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for AE15B-UW-S12
