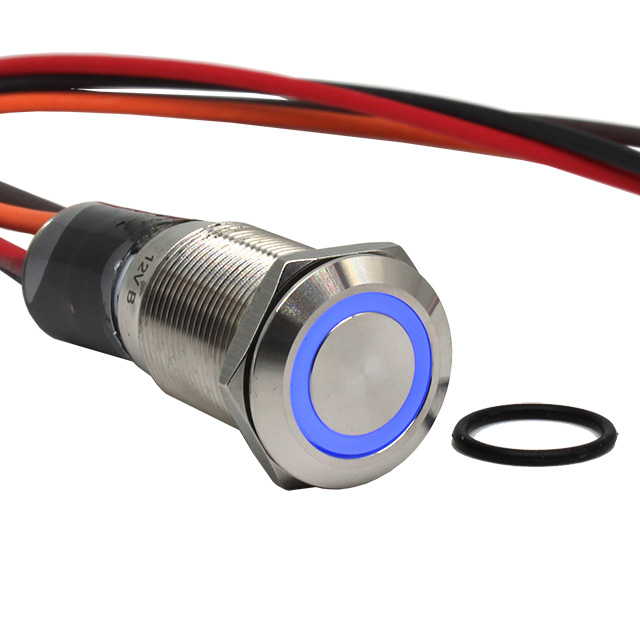

Pushbutton Switches AH1LBSMBNWA2 product image

AH1LBSMBNWA2

$38.01

Description：SWITCH PB SPST NO + SPST NC 20A
Series：AH
Mfr：CIT Relay and Switch
Package：Bag

SKU:5fe10e24ba79 Category: Pushbutton Switches Brand: CIT Relay and Switch

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AH1LBSMBNWA2 is listed in the Pushbutton Switches range at ChipApex. The manufacturer field lists CIT Relay and Switch. Its product description is SWITCH PB SPST NO + SPST NC 20A. Review the specifications below when checking this part for your BOM.

Pushbutton Switches specifications for AH1LBSMBNWA2

Description：SWITCH PB SPST NO + SPST NC 20A
Series：AH
Mfr：CIT Relay and Switch
Package：Bag
Mounting Type：Panel Mount, Front
Type：Anti-Vandal, Illuminated
Circuit：DPST-NO/NC
Switch Function：On-Off, Off-On
Current Rating (Amps)：10A (AC/DC)
Actuator Type：Round, Button, Flush
Actuator Marking：-
Color - Actuator/Cap：Silver
Illumination Type, Color：LED, Blue
Illumination Voltage (Nominal)：-
Termination Style：Wire Leads
Ingress Protection：IP67 - Dust Tight, Waterproof
Features：-
Panel Cutout Dimensions：Circular - 19.00mm Dia
Operating Temperature：-25°C ~ 70°C
Voltage Rating - DC：24 V
Voltage Rating - AC：125 V

Pushbutton Switches datasheet and documents for AH1LBSMBNWA2

AH1LBSMBNWA2
