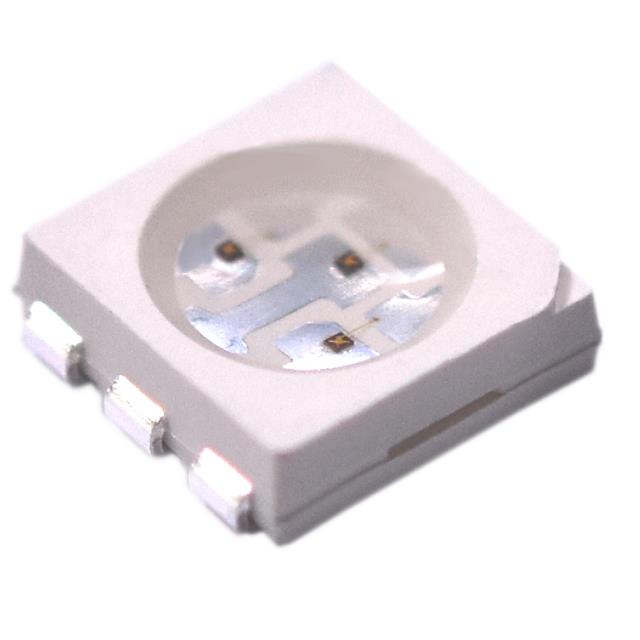

AL5050A-RN-60MA

$0.27

Description：LED RED 5050 SMD
Series：-
Mfr：Solidlite
Package：Strip

SKU:8d2e82be3fcf Category: LED Indication - Discrete Brand: Solidlite

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LED RED 5050 SMD
Series：-
Mfr：Solidlite
Package：Strip
Color：Red
Configuration：Independent
Lens Color：-
Lens Transparency：-
Millicandela Rating：775mcd
Lens Style：Round with Flat Top
Lens Size：4.00mm Dia
Voltage - Forward (Vf) (Typ)：2.1V
Current - Test：20mA
Viewing Angle：120°
Mounting Type：Surface Mount
Wavelength - Dominant：625nm
Wavelength - Peak：-
Features：-
Package / Case：6-SMD, J-Lead
Supplier Device Package：-
Size / Dimension：5.00mm L x 5.00mm W
Height (Max)：1.60mm
Grade：-
Qualification：-

Download product information

AL5050A-RN-60MA

Overview

The Solidlite AL5050A-RN-60MA is a surface-mount red light-emitting diode housed in a 5050 package. It operates at a forward current of 60mA and emits light at a wavelength of 625nm. The typical forward voltage is 2.1V. The component utilizes a 6-SMD, J-Lead configuration for mounting.

Feature Summary

Integrated constant current driver for simplified circuit design
High brightness output suitable for indicator applications
RoHS compliant construction

Applications

Panel status indicators
Instrumentation displays
Consumer electronics signaling

Procurement Notes

Verify the specific suffix 'RN' confirms the red color variant and 60mA drive current. Confirm the 6-SMD J-Lead package dimensions match the target PCB footprint. Ensure RoHS compliance documentation is available for regulatory requirements.

Selection Notes

Select this component when a high-brightness red indicator with integrated current regulation is required. The 60mA rating provides higher intensity than standard 20mA LEDs. Verify thermal management capabilities for the intended enclosure environment.

Part Context

This part belongs to the Solidlite AL5050A series of surface-mount LEDs. The series includes various colors such as blue and yellow variants. The AL5050A designation indicates the 5050 package size and integrated driver technology.

Replacement Considerations

Check for direct substitutes from other manufacturers offering similar 5050 SMD packages with integrated drivers. Verify pinout compatibility and forward voltage characteristics before substitution.
